Polaris RZR Pro XP Long Travel Suspension Kit

Go wider, stretch the wheelbase, and give your Polaris RZR Pro XP the planted stance it should have had from the factory. The L&W Fab Long Travel Suspension Kit adds 4” per side, bringing your Pro XP to a 72” width with stock offset wheels. It also adds 3.5” to the wheelbase for better stability, more confidence at speed, and a tougher long travel look.

This kit is built around high clearance front A-arms, adjustable high clearance trailing arms, billet aluminum radius rods, and upgraded tie rods with L&W HD rebuildable inner joints. The front A-arms use a 1.75” forward offset, while the rear trailing arms use a 1.75” rear offset to improve stability and tire clearance. It keeps the factory shock locations and works with factory Pro XP bushings and factory stock size ball joints.

FEATURES

• Fits 2020-current Polaris RZR Pro XP models
• Adds 4” per side for a 72” width with stock offset wheels
• Adds 3.5” to the wheelbase for improved stability
• Front A-arms feature 1.75” forward offset
• Rear trailing arms feature 1.75” rear offset
• Bolt on installation
• No drilling required
• High clearance 1.5” DOM front A-arms
• High clearance adjustable heavy duty steel trailing arms
• High clearance billet aluminum radius rods with adjustable uppers
• Includes tie rods with L&W HD rebuildable inner joints
• Includes one extended brake line for the front passenger side
• Keeps factory front and rear shock locations
• Can use factory Pro XP bushings
• Can use factory stock size ball joints
• Optional Race Spec A-arms available with 3/16” wall construction
• Built for aggressive trail riding, desert, dunes, and high performance Pro XP builds

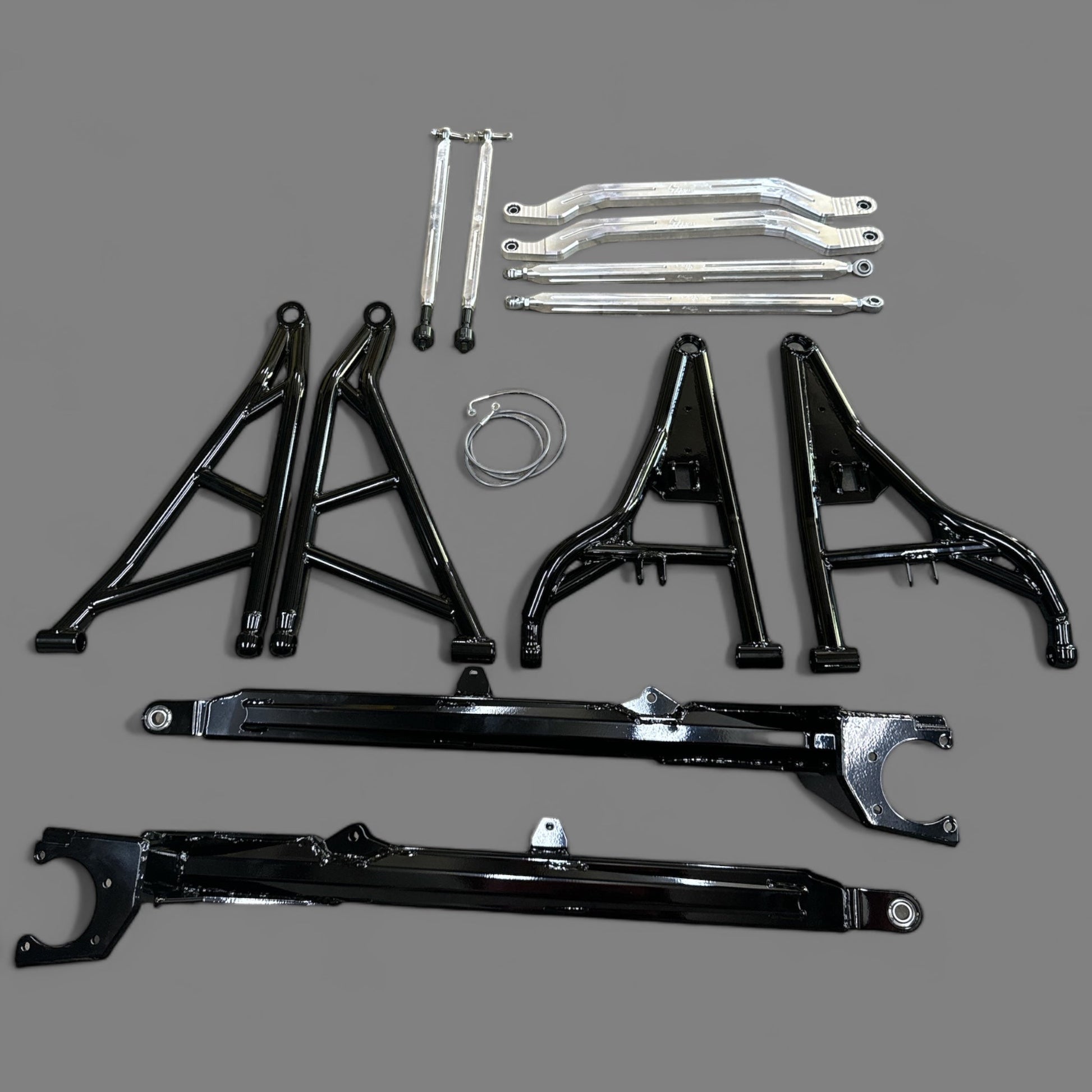

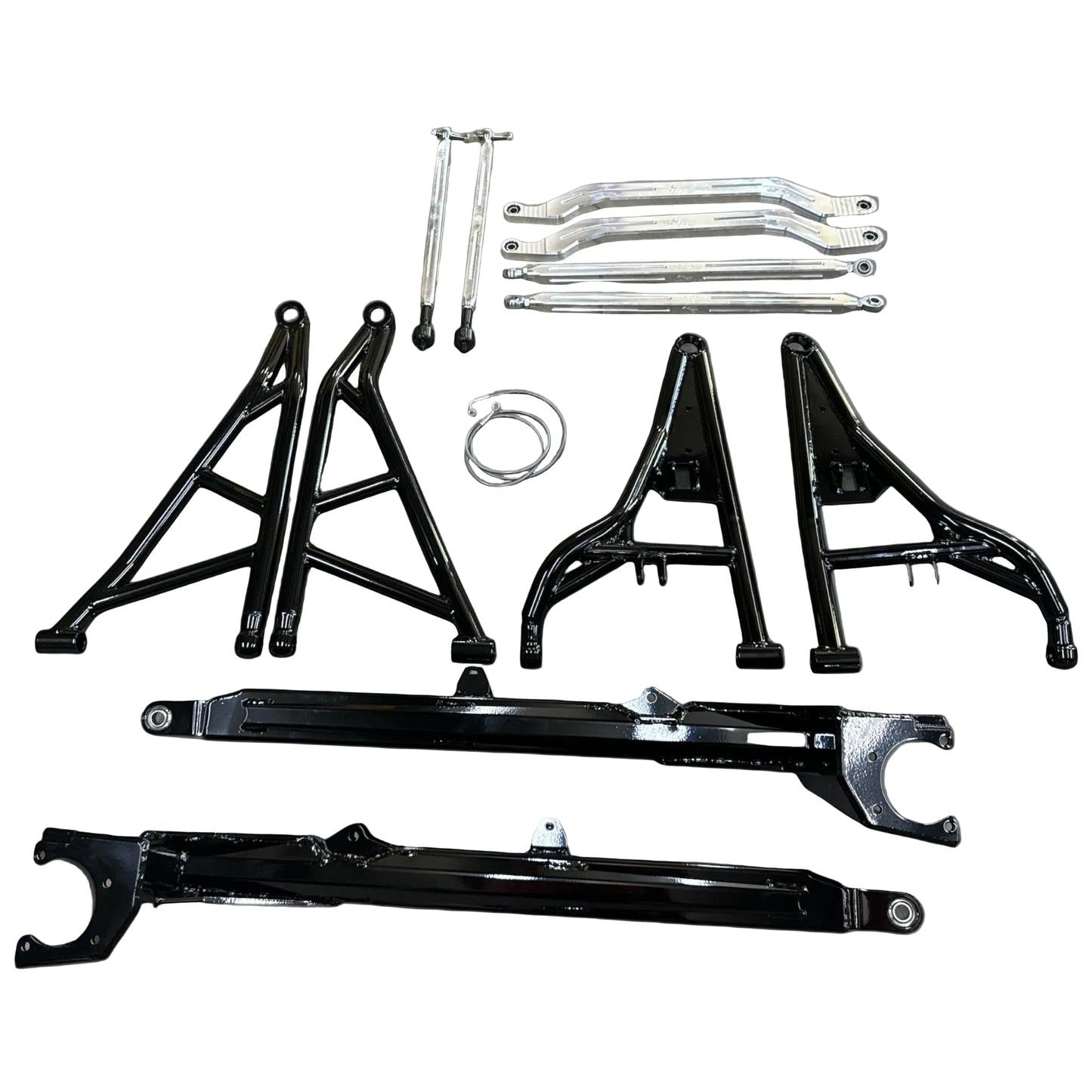

INCLUDES

• Front upper and lower A-arms
• Tie rods with L&W HD rebuildable inner joints
• High clearance steel adjustable heavy duty trailing arms
• High clearance billet aluminum radius rods with adjustable uppers
• One extended brake line for front passenger side

NOTES

• Requires Turbo S axles (Not included)
• Requires RZR XP / Turbo S hubs, (Not included)
• Hub OEM part number: 5141353-067
• Stock size ball joints only

• Factory Pro XP bushings and factory ball joints can be reused
• Ball joints and A-arm bushings do not come installed when purchased
• L&W Fab recommends a spring upgrade because this kit will greatly increase spring softness
• 14” wheels may contact the A-arm at full turn, steering stops are recommended when running 14” wheels
• Only steel parts, A-arms and trailing arms, come powder coated when powder coat is selected


VEHICLE FITMENT

Polaris RZR Pro XP
