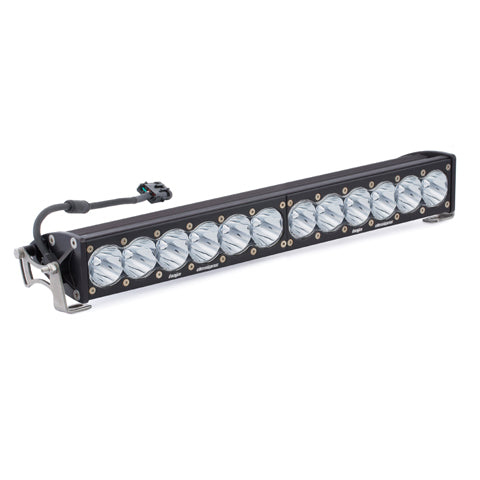

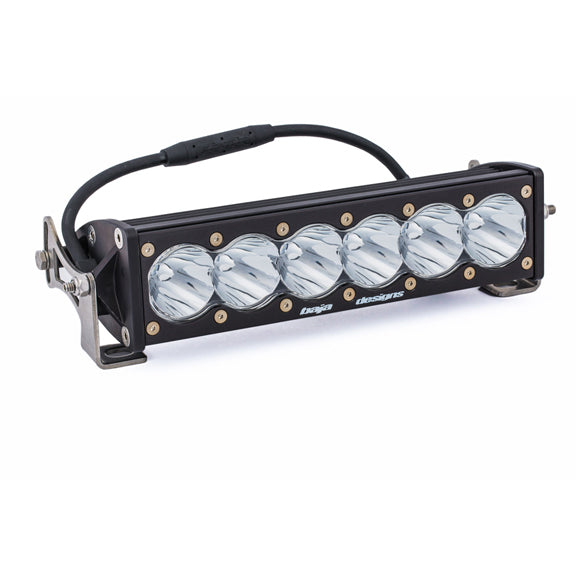

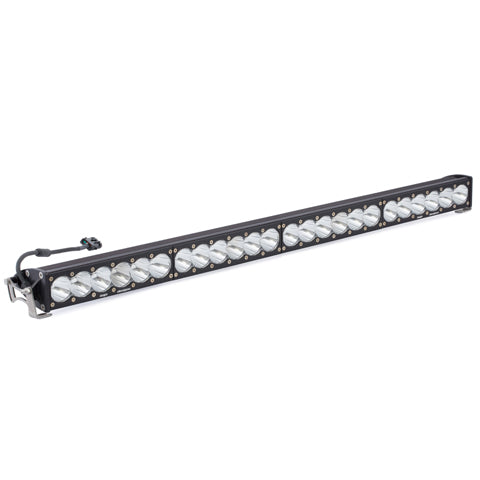

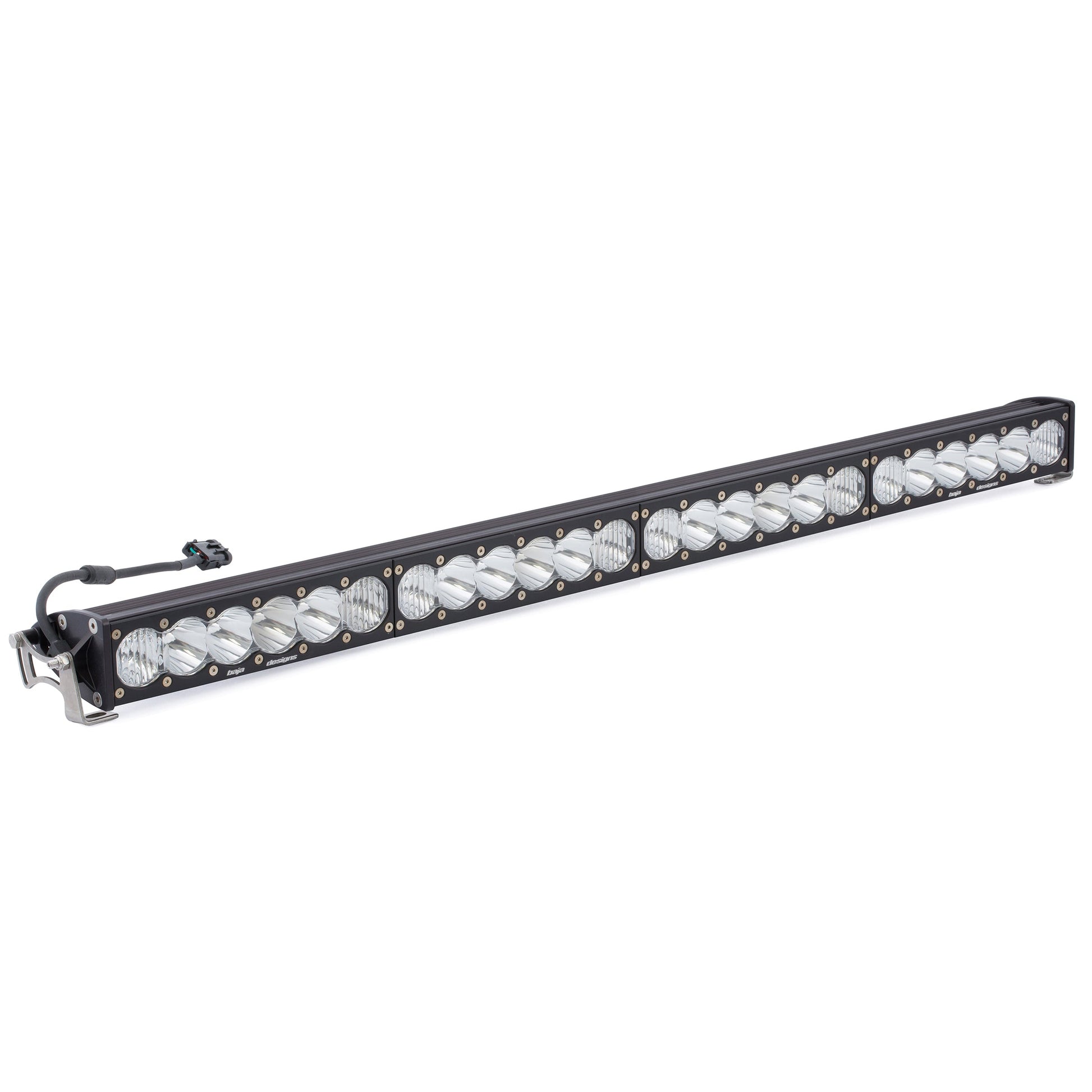

OnX6+ Straight LED Light Bar | Baja Designs

When you want premium off-road lighting without compromise, the Baja Designs OnX6+ Straight LED Light Bar is built to deliver. This is Baja Designs’ high-output straight light bar platform, designed for serious trail riders, racers, prerunners, chase vehicles, trucks, Jeeps, UTVs, and custom off-road builds that need big distance and clean usable light.

The OnX6+ uses Baja Designs’ high-speed spot reflectors and next-generation LED technology to deliver major output with excellent efficiency. Available in 10 inch, 20 inch, 30 inch, 40 inch, and 50 inch lengths, this light bar can be built for everything from compact bumper installs to full-width roof setups. Depending on size, output ranges from 10,817 raw lumens all the way up to 39,430 raw lumens.

Choose Spot for long-distance reach, Driving/Combo for a balanced mix of distance and near-field coverage, or Wide Cornering for broader side-to-side visibility in dust, fog, rain, snow, and technical terrain. With adjustable mounting, ClearView optics, MoistureBlock waterproof protection, CopperDrive LED management, and uService technology, the OnX6+ is made for hard off-road use and easy long-term service.

FEATURES

• Universal Baja Designs OnX6+ Straight LED light bar
• Available in 10 inch, 20 inch, 30 inch, 40 inch, and 50 inch sizes
• Output ranges from 10,817 raw lumens to 39,430 raw lumens depending on size
• Available in Spot, Driving/Combo, and Wide Cornering beam patterns

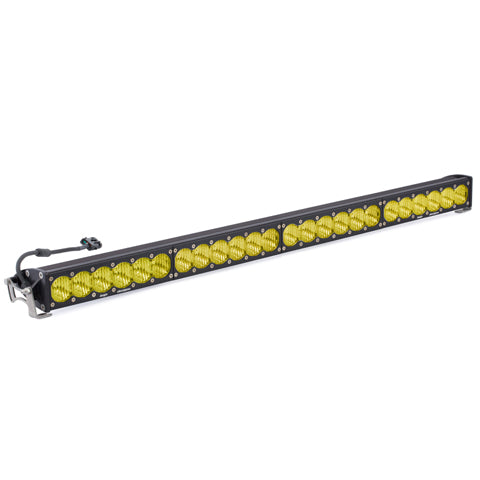

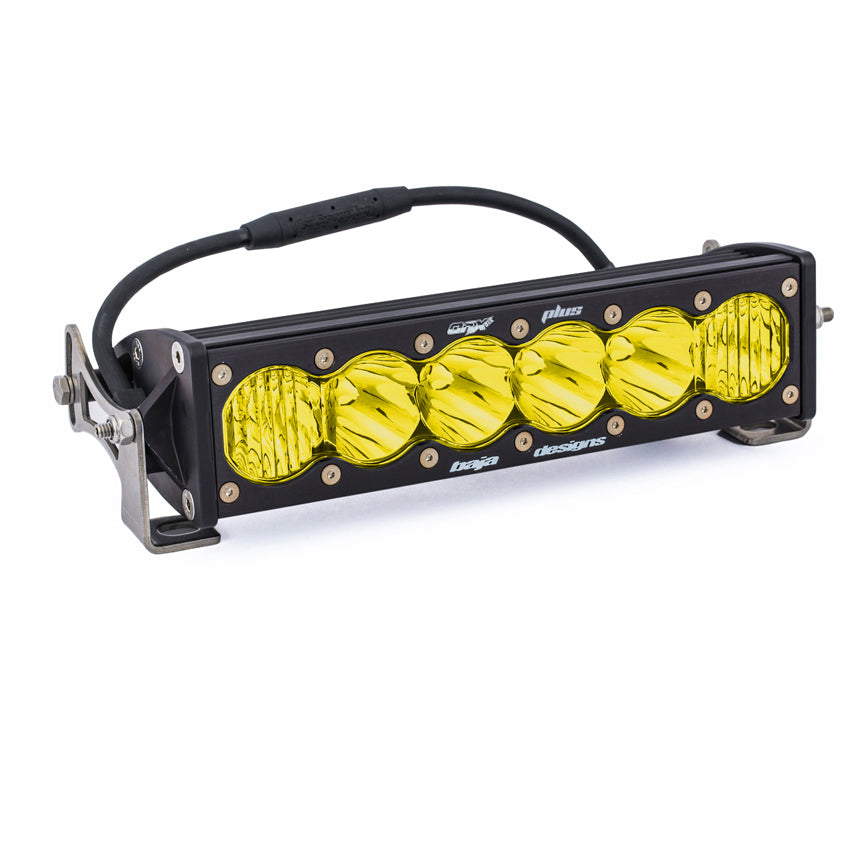

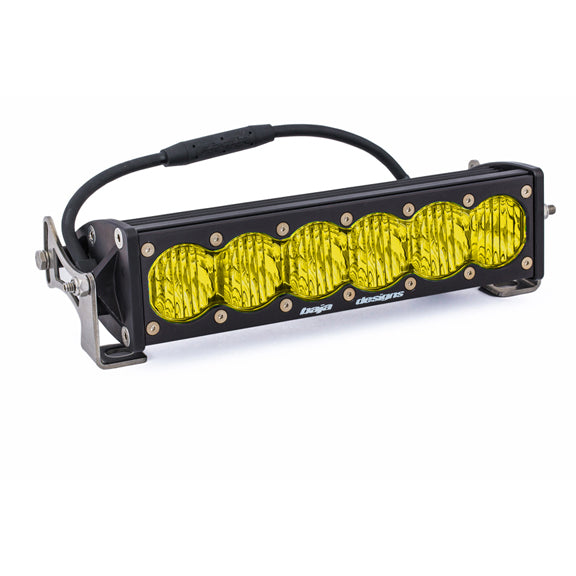

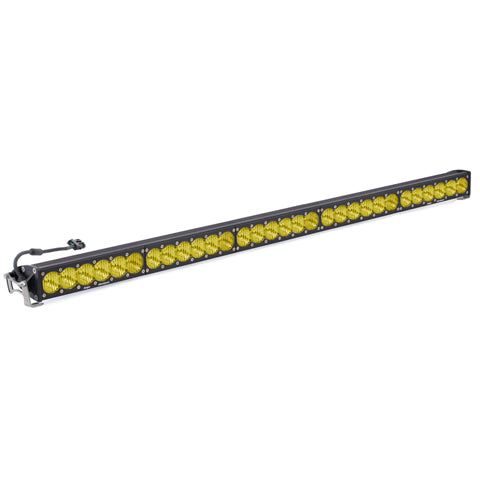

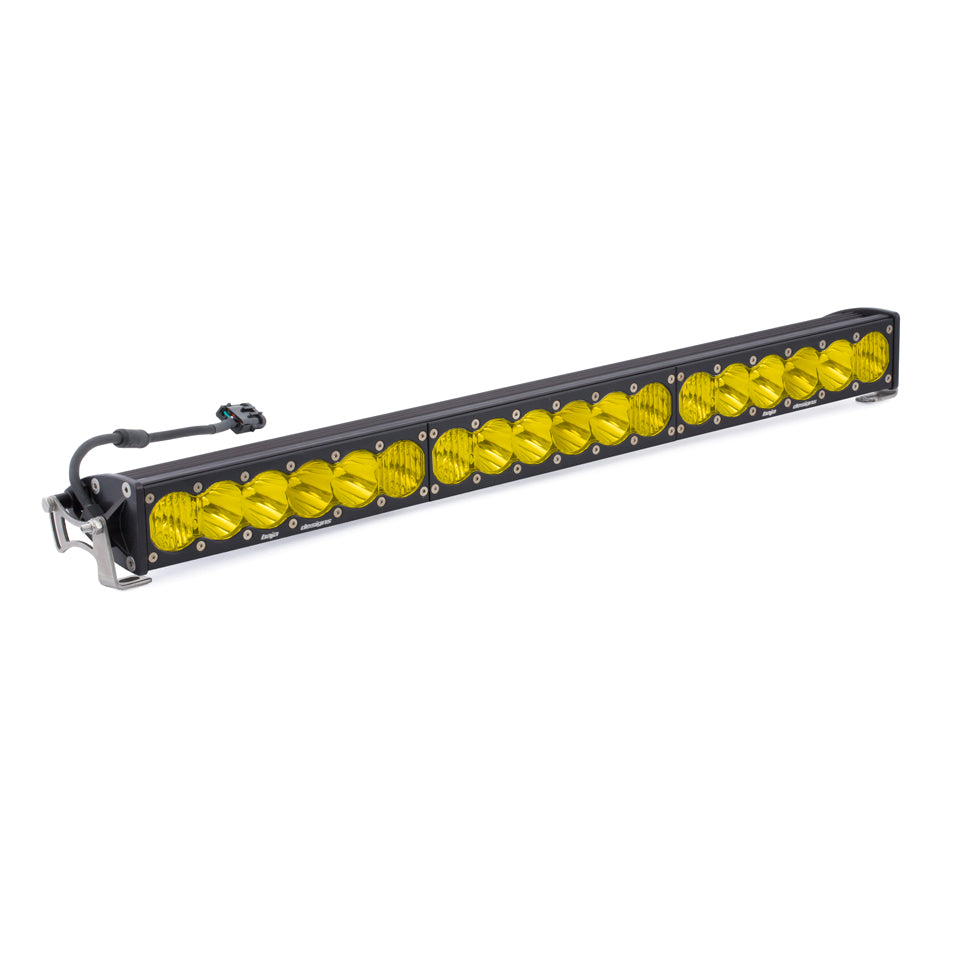

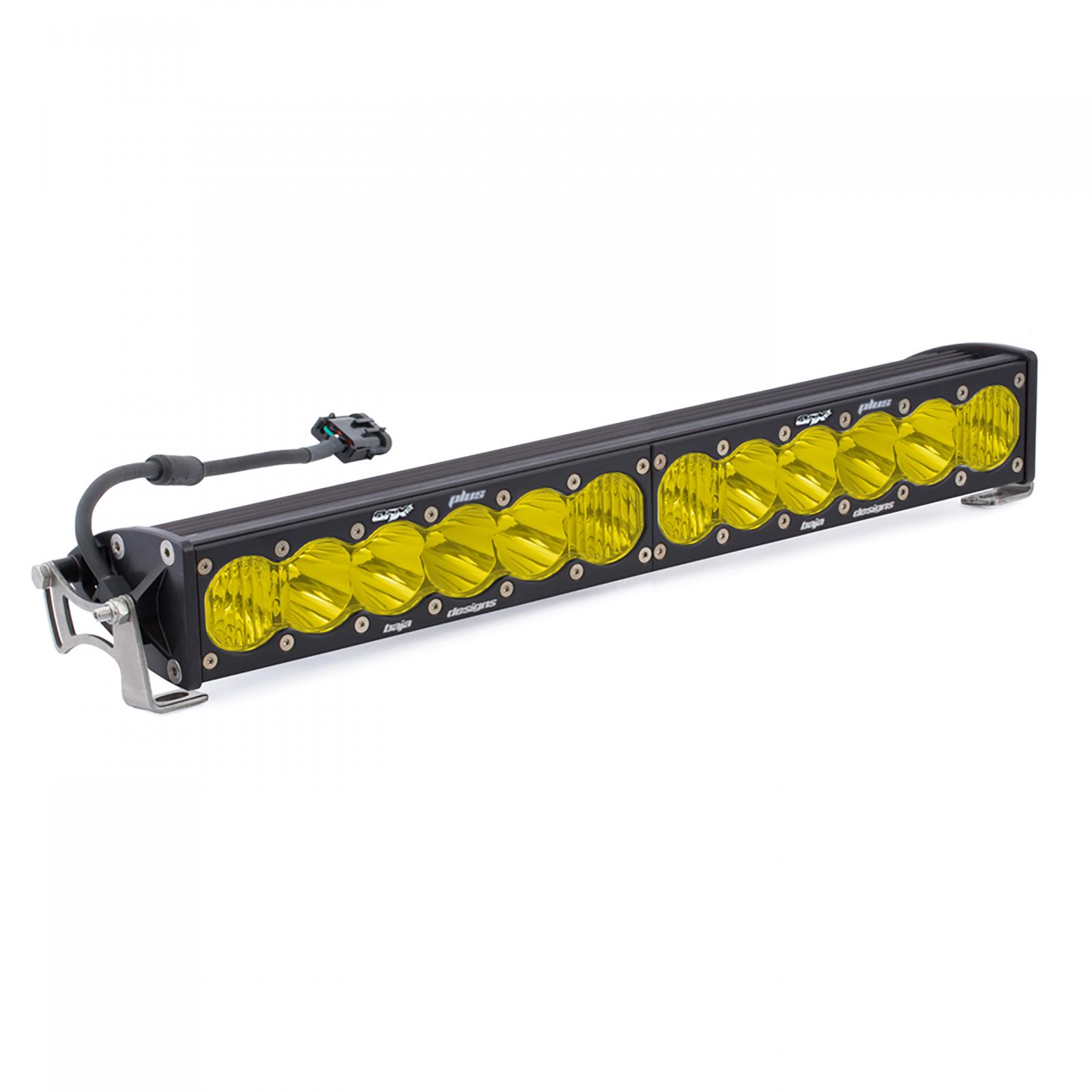

• Available with Clear or Baja Amber lens options
• High-speed spot reflectors improve long-distance visibility
• Designed to illuminate lighting zones 1, 2, 3, and 4 while pushing into zone 5
• High beam and low beam lighting modes on most sizes
• Note: 50 inch OnX6+ does not have Hi-Lo function
• Vertical adjustment allows precise beam positioning
• Great for roof bars, bumpers, chase vehicles, prerunners, race vehicles, trucks, Jeeps, and UTVs
• 5000K daylight color reduces eye fatigue and improves natural visibility
• ClearView optics put light where you need it
• MoistureBlock technology provides waterproof, rain proof, and submersible protection
• CopperDrive LED management keeps LEDs driven at full power
• Hardcoated polycarbonate lens
• Aircraft grade aluminum housing with Mil-Spec hard anodized finish
• Billet machined aluminum bezel
• Stainless steel mounting brackets and hardware
• Built-in overvoltage protection
• 49,930 hour rated life
• IP69K waterproof up to 9 feet and pressure washable
• IK10 impact compliant
• Exceeds MIL STD810G durability testing
• uService technology allows replaceable lenses and optics
• Mounting brackets included

NOTES

• Wiring harness not included
• Compatible wiring harness for 10 to 20 inch bars: Baja Designs 640115
• Compatible wiring harness for 30 to 50 inch bars: Baja Designs 640119

VEHICLE FITMENT

Universal
