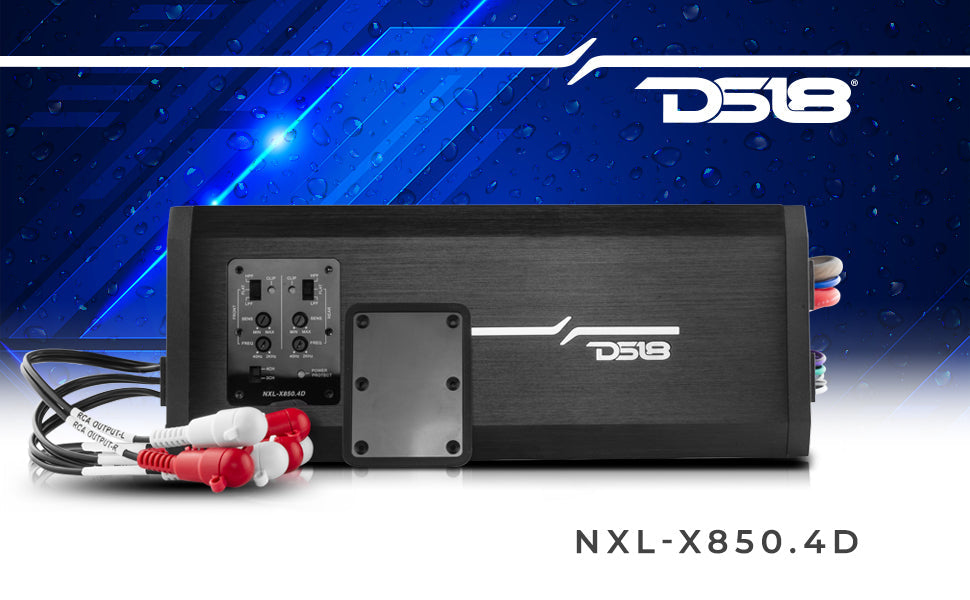

NXL-X850.4D Full-Range Class D 4-Channel Amplifier

Power your marine or powersports audio system with big output and serious outdoor durability. The DS18 NXL-X850.4D Full Range Class D 4 Channel Amplifier is built for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom audio systems that need clean power in a rugged waterproof package.

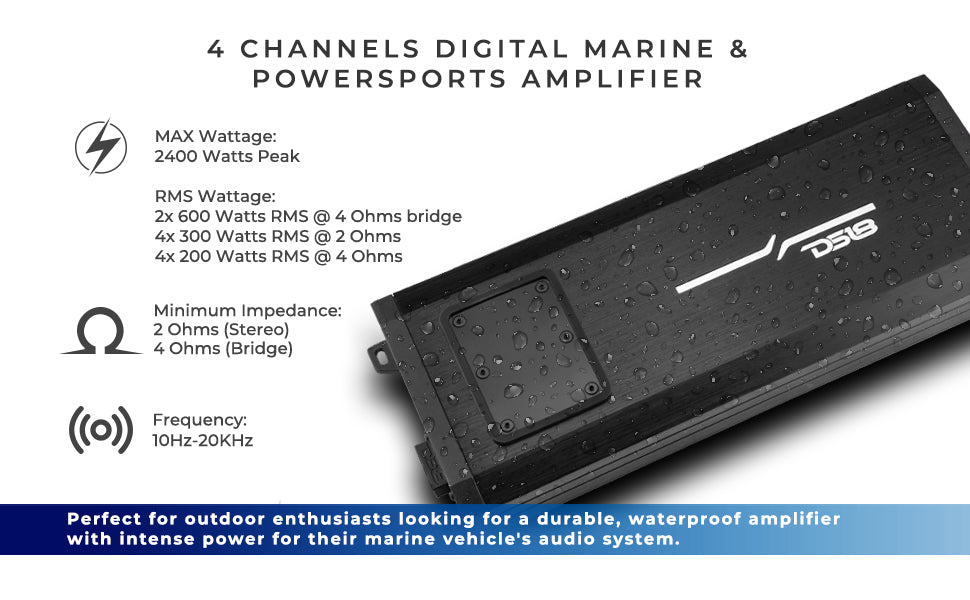

The NXL-X850.4D delivers 4 x 200 watts RMS at 4 ohms, 4 x 300 watts RMS at 2 ohms, and 2 x 600 watts RMS bridged at 4 ohms, giving you the flexibility to run high output speakers or bridge channels for even more power. With 2400 watts peak power, IP67 waterproof protection, UV and salt fog resistance, selectable HPF, full range, and LPF crossover settings, quick connect plugs, and a direct power harness design, this amplifier is ready for wet, dusty, hot, and hard riding conditions.

FEATURES

• 4 channel full range marine and powersports amplifier
• Class D digital amplifier design
• 2400 watts peak power
• 4 x 200 watts RMS at 4 ohms
• 4 x 300 watts RMS at 2 ohms
• 2 x 600 watts RMS bridged at 4 ohms
• 2 ohm stable stereo and 4 ohm stable bridged

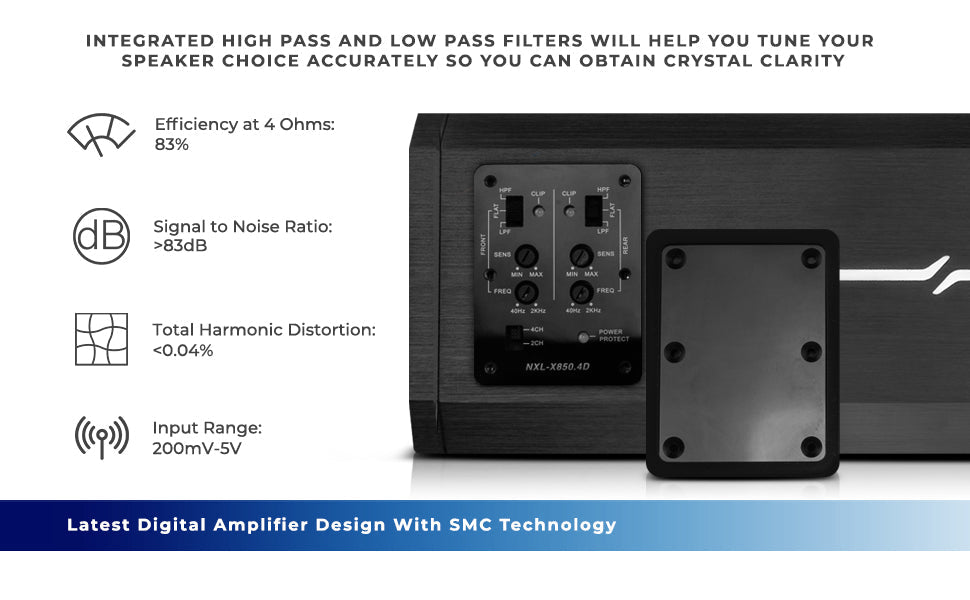

• Selectable HPF, full range, and LPF crossover control
• 40Hz to 2KHz crossover filter range
• 10Hz to 20KHz frequency response
• Greater than 83dB signal to noise ratio
• 83% efficiency at 4 ohms
• 60dB channel separation
• Less than 0.04% total harmonic distortion
• 2 channel and 4 channel input selector
• RCA audio output
• 8 gauge tinned OFC power input

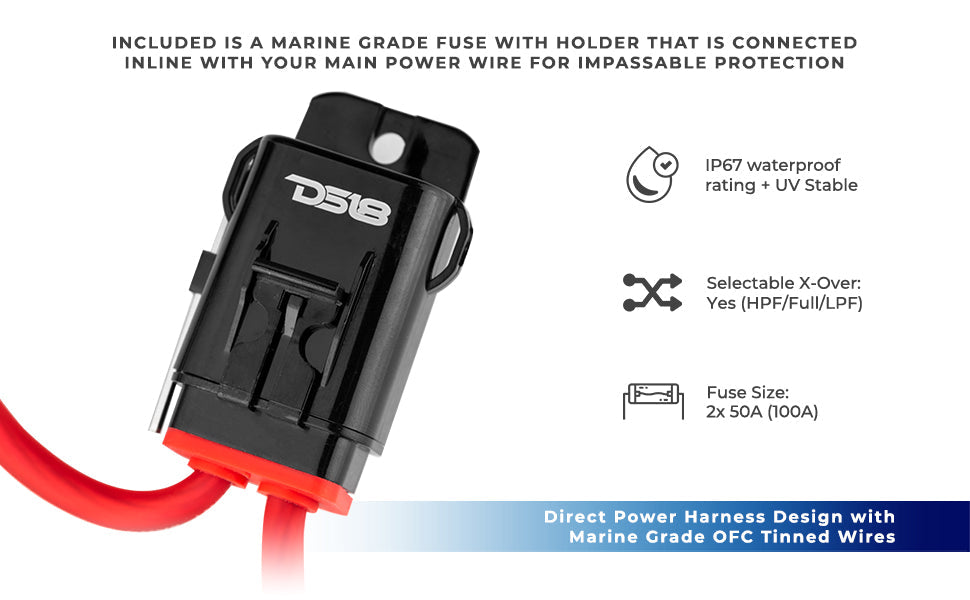

• Direct power harness design with quick connect plug
• Marine grade fuse holder
• 2 x 50 amp fuse size
• Power, protection, and clip LED indicators
• Thermal, overload, short circuit, and voltage input protection
• IP67 waterproof rating
• UV and salt fog protection for marine and outdoor use
• Surface mount component technology
• Black brushed aluminum finish
• Compact design for tight installs
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom powersports audio systems

VEHICLE FITMENT

Universal
