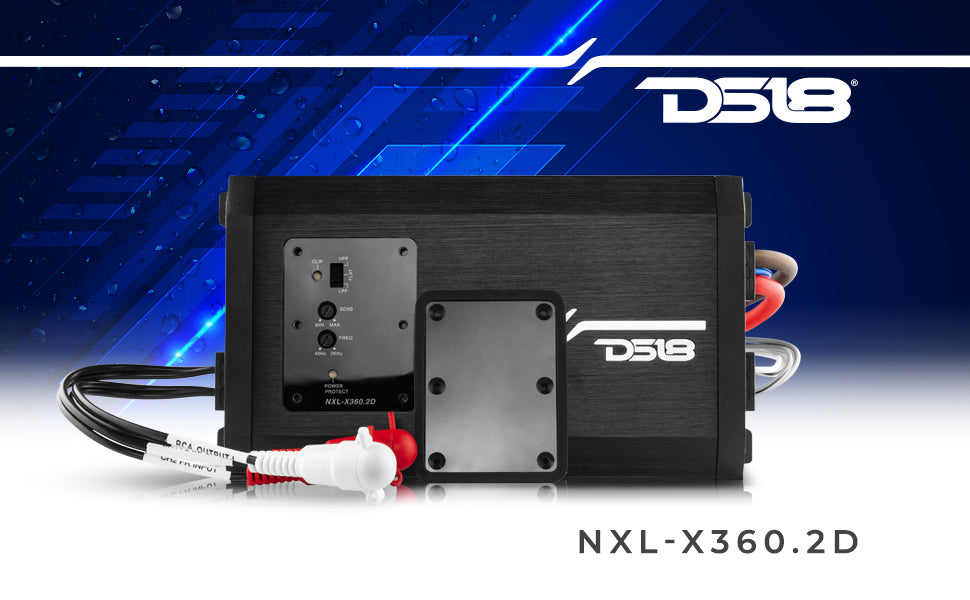

NXL-X360.2D Full-Range Class D 2-Channel Amplifier

Power your marine or powersports speakers with clean output, compact size, and serious outdoor durability. The DS18 NXL-X360.2D Full Range Class D 2 Channel Amplifier is built for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom audio systems that need strong power in a waterproof package.

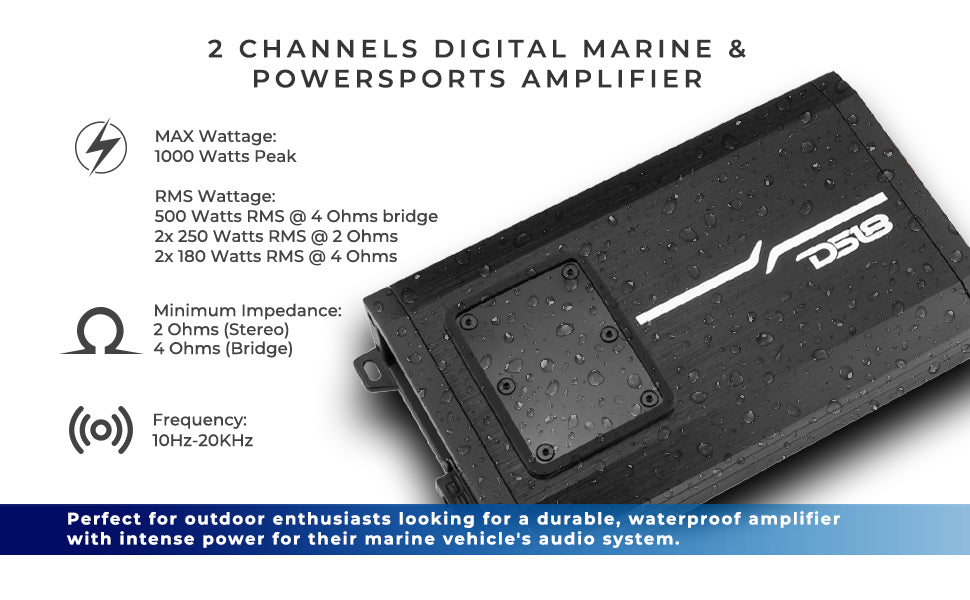

The NXL-X360.2D delivers 2 x 180 watts RMS at 4 ohms, 2 x 250 watts RMS at 2 ohms, and 1 x 500 watts RMS bridged at 4 ohms, giving you flexible power for a pair of speakers or a bridged subwoofer setup. With 1000 watts peak power, IP67 waterproof protection, UV and salt fog resistance, built in crossover control, quick connect plugs, and a direct power harness design, this amplifier is ready for water, dust, vibration, and long days outside.

FEATURES

• 2 channel full range marine and powersports amplifier
• Class D digital amplifier design
• 1000 watts peak power
• 2 x 180 watts RMS at 4 ohms
• 2 x 250 watts RMS at 2 ohms
• 1 x 500 watts RMS bridged at 4 ohms
• 2 ohm stable stereo and 4 ohm stable bridged

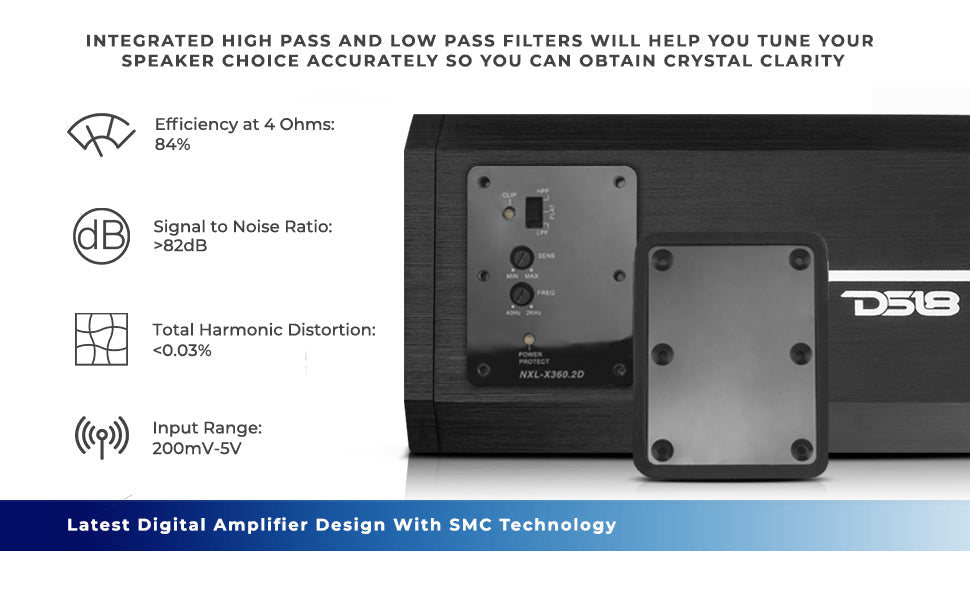

• Selectable HPF, full range, and LPF crossover control
• 40Hz to 2KHz crossover filter range
• 10Hz to 20KHz frequency response
• 82dB signal to noise ratio
• 84% efficiency at 4 ohms
• 60dB channel separation
• Less than 0.03% total harmonic distortion
• RCA audio output
• 8 gauge tinned OFC power input
• Direct power harness design with quick connect plug
• Marine grade fuse holder
• 2 x 20 amp fuse size
• Power, protection, and clip LED indicators
• Thermal, overload, short circuit, and voltage input protection
• IP67 waterproof rating
• UV and salt fog protection for marine and outdoor use
• Black brushed aluminum finish
• Compact design for tight installs
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom powersports audio systems

VEHICLE FITMENT

Universal
