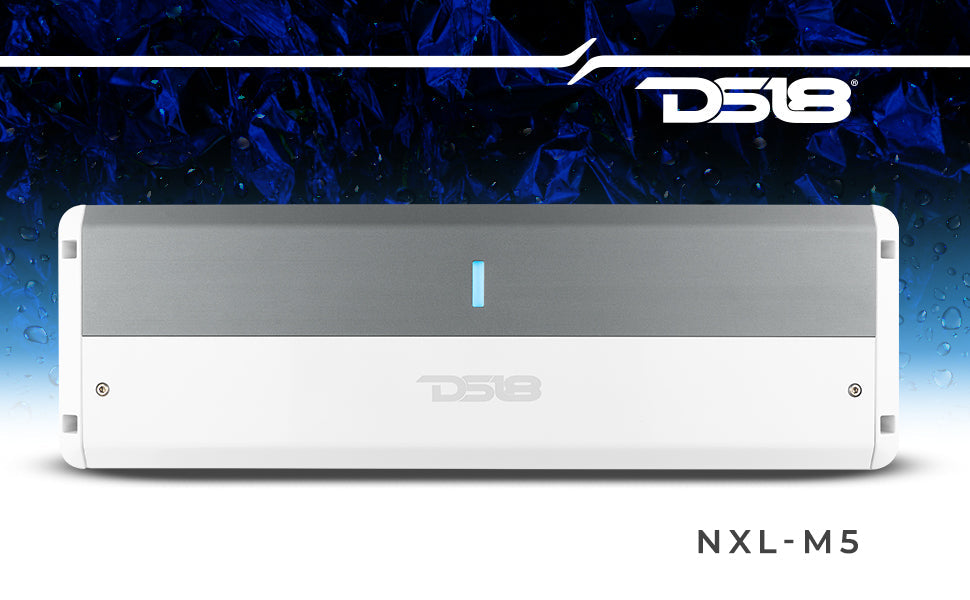

NXL-M5 Full-Range Class D 5-Channel Amplifier

Power your full marine or powersports audio system from one clean, efficient amp with the DS18 NXL-M5 Full Range Class D 5 Channel Amplifier. Built for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom audio builds, this amplifier gives you dedicated power for front speakers, rear speakers, and a subwoofer in one compact marine grade package.

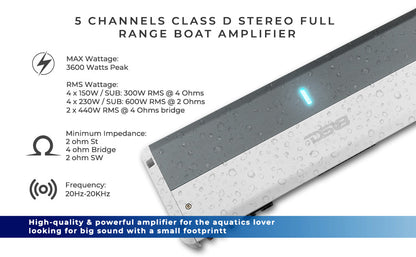

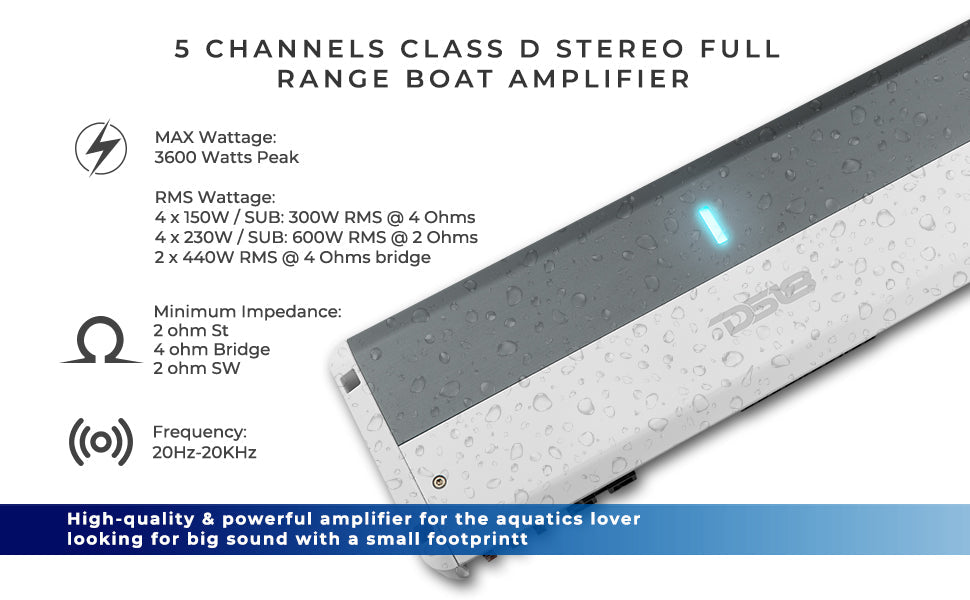

The NXL-M5 delivers 4 x 150 watts RMS plus 1 x 300 watts RMS for the sub channel at 4 ohms, or 4 x 230 watts RMS plus 1 x 600 watts RMS for the sub channel at 2 ohms. With 3600 watts peak power, selectable HPF, LPF, and full range crossover controls, subwoofer bass boost, phase control, high level input, coated 4 layer PCB, IPX5 water resistance, UV protection, and corrosion resistant hardware, this 5 channel amp is ready for serious outdoor audio systems.

FEATURES

• 5 channel full range marine grade amplifier
• Class D digital amplifier design
• 3600 watts peak power
• 4 x 150 watts RMS plus 1 x 300 watts RMS sub channel at 4 ohms
• 4 x 230 watts RMS plus 1 x 600 watts RMS sub channel at 2 ohms
• 2 x 440 watts RMS bridged at 4 ohms
• 2 ohm stable stereo and subwoofer operation
• 4 ohm stable bridged operation

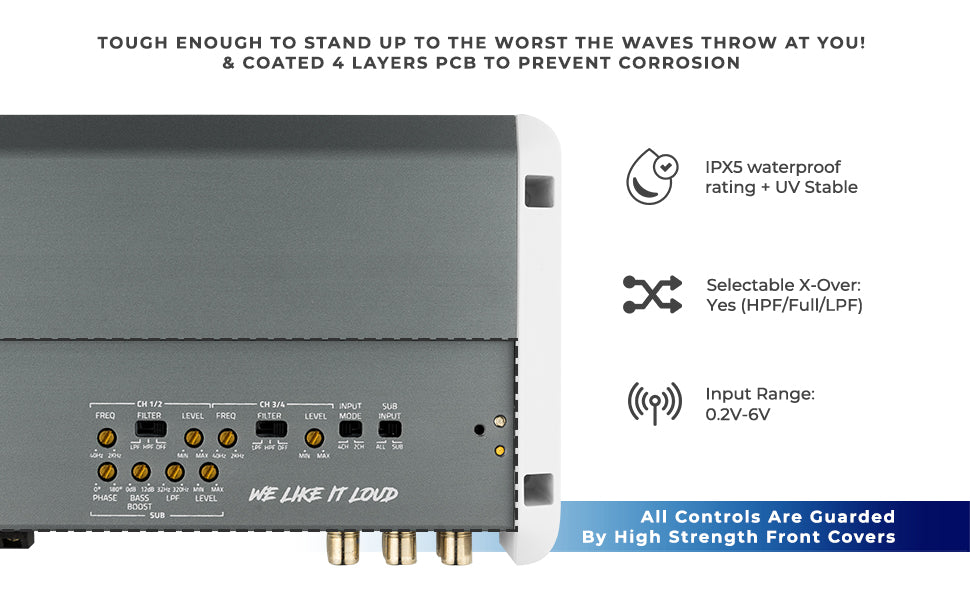

• Built in selectable HPF, LPF, and full range crossover
• 40Hz to 2KHz crossover range with 32Hz to 320Hz subwoofer range
• 0dB to 12dB subwoofer bass boost
• 45Hz bass boost frequency
• 0 to 180 degree subwoofer phase selector
• 20Hz to 20KHz frequency response
• Over 90dB signal to noise ratio
• Over 97% efficiency at 4 ohms

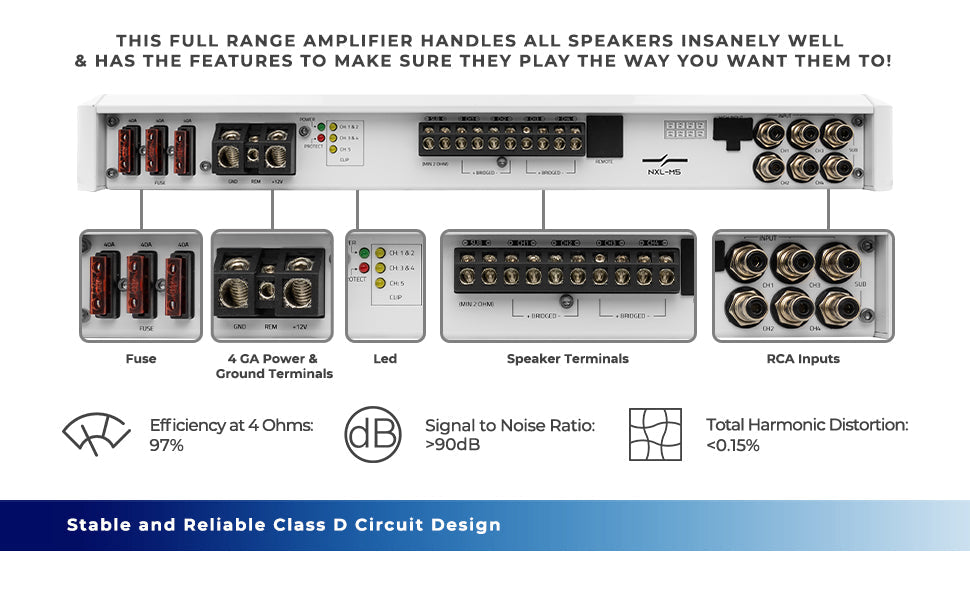

• High level speaker input
• 2 channel, 4 channel, and 5 channel input mode selector
• Tiffany style RCA connections
• Power, protection, and clipping LED indicators
• 4 gauge power input terminal
• 120 amp fuse rating with 3 x 40 amp fuses
• Thermal, overload, short circuit, DC output, clipping, and voltage input protection
• Coated 4 layer PCB for improved outdoor durability
• IPX5 water resistant rating
• UV protected and corrosion resistant hardware
• Compact aluminum and ABS housing
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and complete powersports audio systems

VEHICLE FITMENT

Universal
