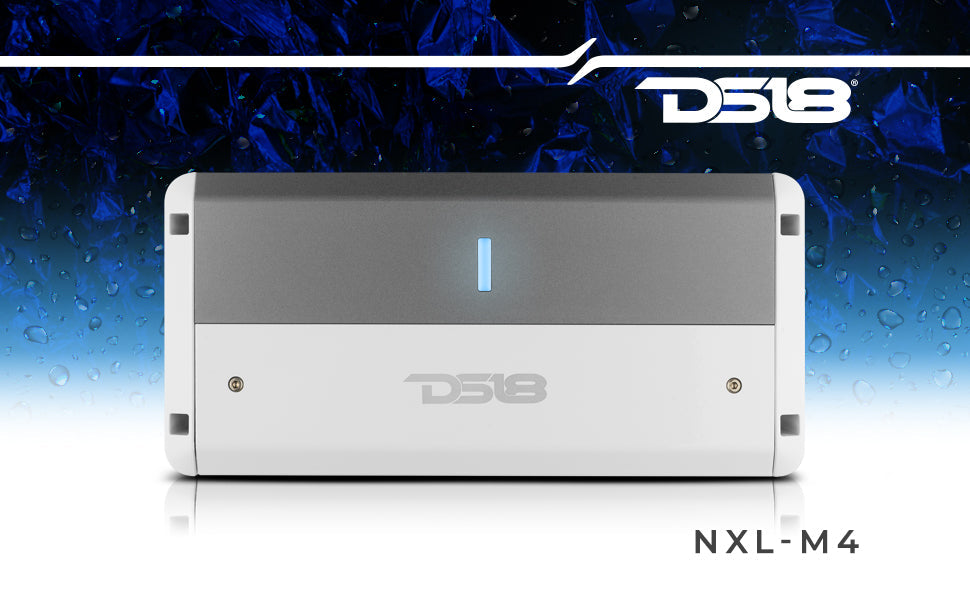

NXL-M4 Full-Range Class D 4-Channel Amplifier

Power your marine or powersports audio system with clean output and rugged outdoor durability from the DS18 NXL-M4 Full Range Class D 4 Channel Amplifier. Built for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom audio systems, this marine grade amp gives you strong power in a compact package that is ready for rough conditions.

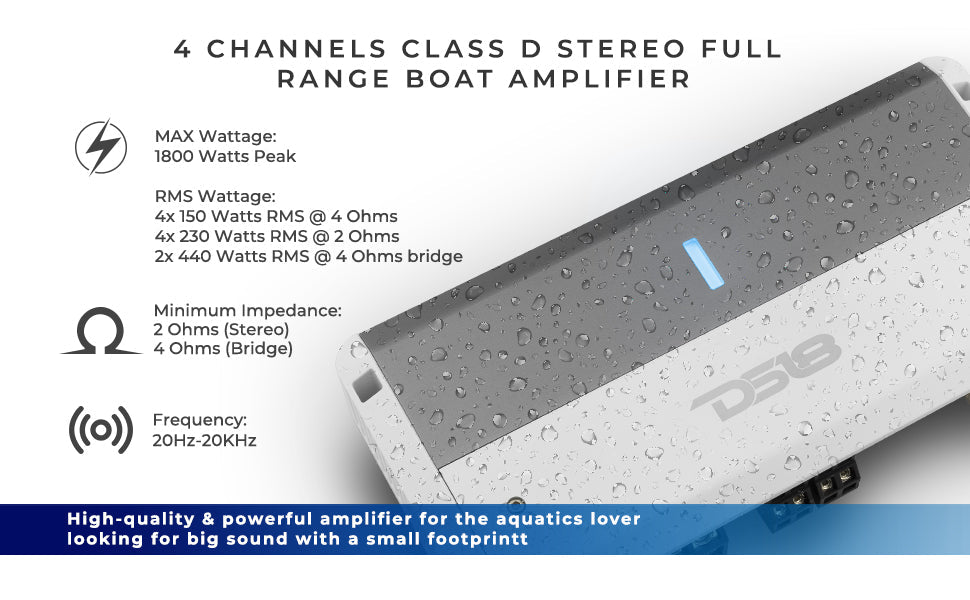

The NXL-M4 delivers 4 x 150 watts RMS at 4 ohms, 4 x 230 watts RMS at 2 ohms, and 2 x 440 watts RMS bridged at 4 ohms, with 1800 watts peak power. Its Class D design keeps performance efficient, while the built in crossover, high level input, RCA output, coated 4 layer PCB, corrosion resistant hardware, and IPX5 water resistant construction make it a solid choice for high output marine and powersports speaker systems.

FEATURES

• 4 channel full range marine grade amplifier
• Class D digital amplifier design
• 1800 watts peak power
• 4 x 150 watts RMS at 4 ohms
• 4 x 230 watts RMS at 2 ohms
• 2 x 440 watts RMS bridged at 4 ohms
• 2 ohm stable stereo and 4 ohm stable bridged
• Built in selectable HPF, LPF, and full range crossover
• 40Hz to 2KHz crossover filter range
• 0dB to 12dB bass boost
• 20Hz to 20KHz frequency response
• Over 90dB signal to noise ratio
• RCA output with Tiffany style RCA connections
• High level speaker input
• 2 channel or 4 channel input mode selector
• Power, protection, and clipping LED indicators

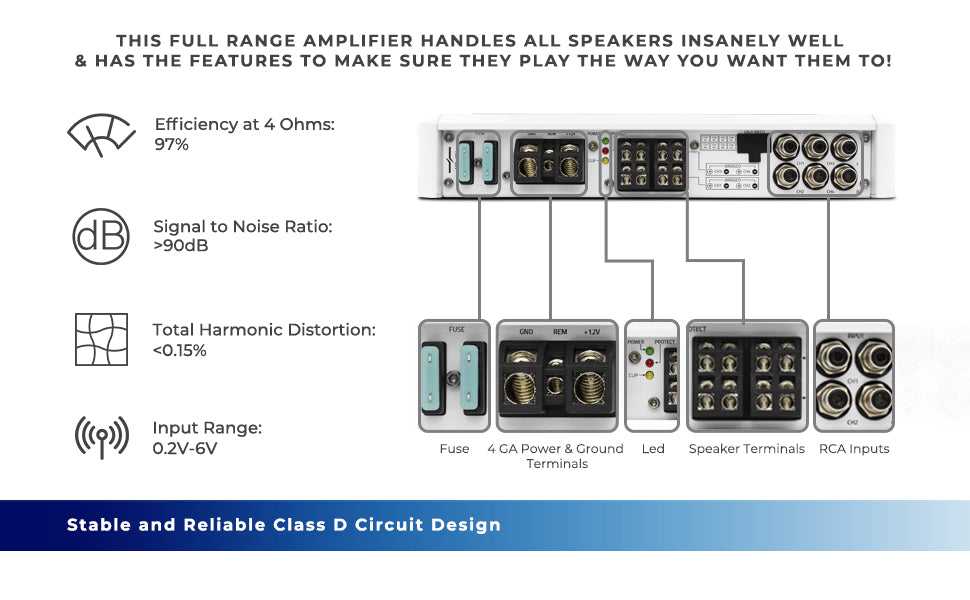

• 4 gauge power input terminals
• 80 amp fuse rating with 2 x 40 amp fuses
• Thermal, overload, short circuit, DC output, clipping, and voltage input protection

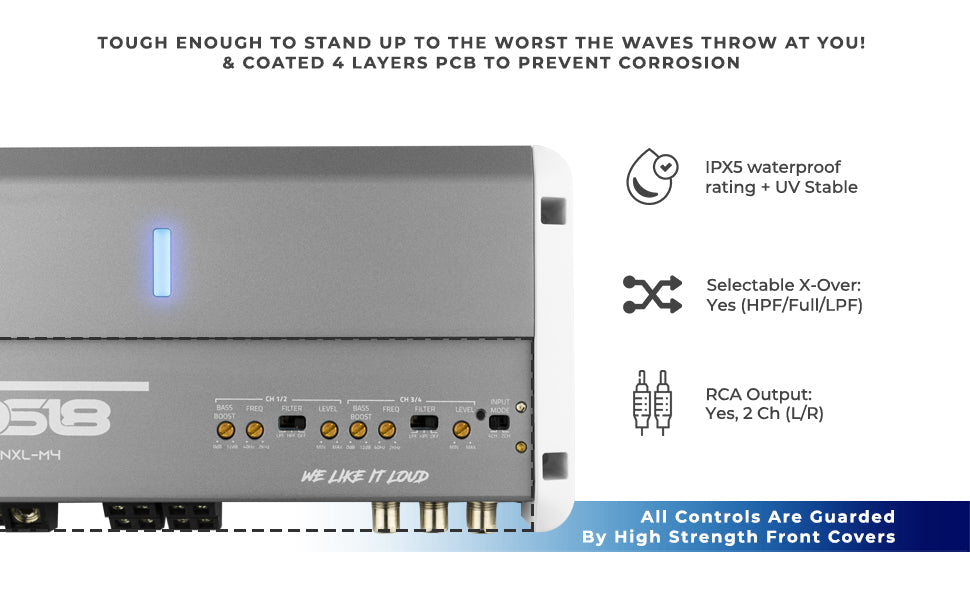

• Coated 4 layer PCB for improved outdoor durability
• IPX5 water resistant rating
• UV protected and corrosion resistant hardware
• Compact aluminum and ABS housing
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom powersports audio systems

VEHICLE FITMENT

Universal
