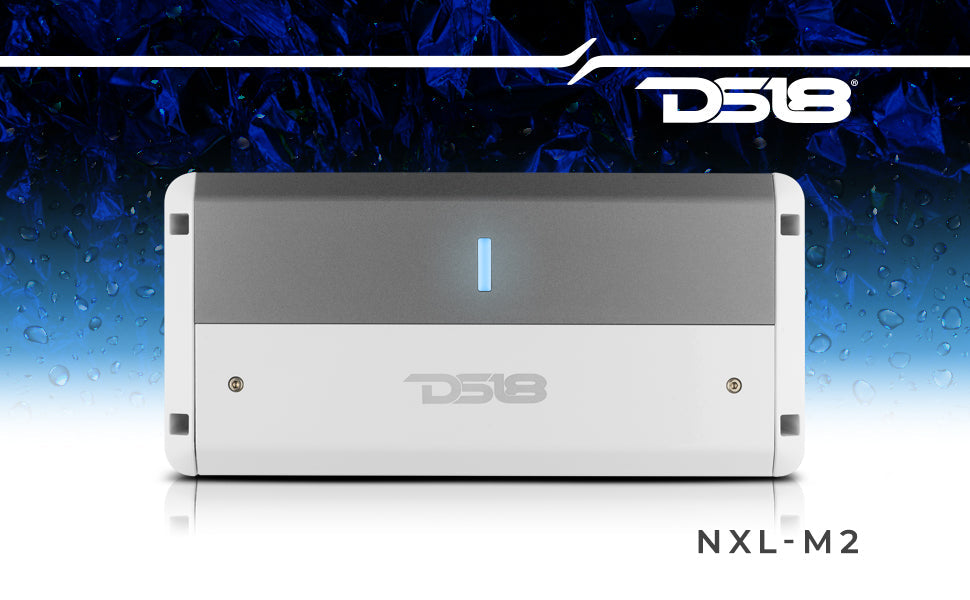

NXL-M2 Full-Range Class D 2-Channel Amplifier

Power your boat, UTV, ATV, motorcycle, golf cart, Jeep, or custom audio system with clean marine grade output from the DS18 NXL-M2 Full Range Class D 2 Channel Amplifier. This compact amp is built for outdoor audio systems that need strong power, efficient performance, and dependable protection against harsh riding and marine conditions.

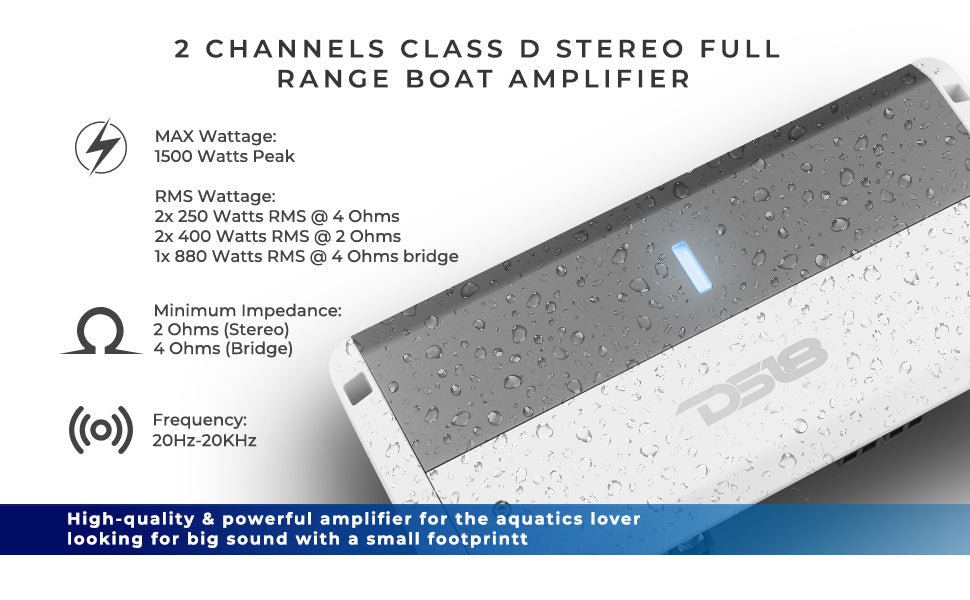

The NXL-M2 delivers 2 x 250 watts RMS at 4 ohms, 2 x 400 watts RMS at 2 ohms, and 1 x 880 watts RMS bridged, with 1500 watts peak power. Its Class D design keeps output efficient, while the built in crossover, bass boost, high level input, RCA output, coated 4 layer PCB, and IPX5 water resistant construction make it a great choice for high output marine and powersports speaker systems.

FEATURES

• 2 channel full range marine grade amplifier
• Class D digital amplifier design
• 1500 watts peak power
• 2 x 250 watts RMS at 4 ohms
• 2 x 400 watts RMS at 2 ohms
• 1 x 880 watts RMS bridged
• 2 ohm stable stereo and 4 ohm stable bridged
• Built in selectable HPF, LPF, and full range crossover
• 40Hz to 2KHz crossover filter range
• 0dB to 12dB bass boost
• 20Hz to 20KHz frequency response
• Over 90dB signal to noise ratio
• Over 90% efficiency at 4 ohms

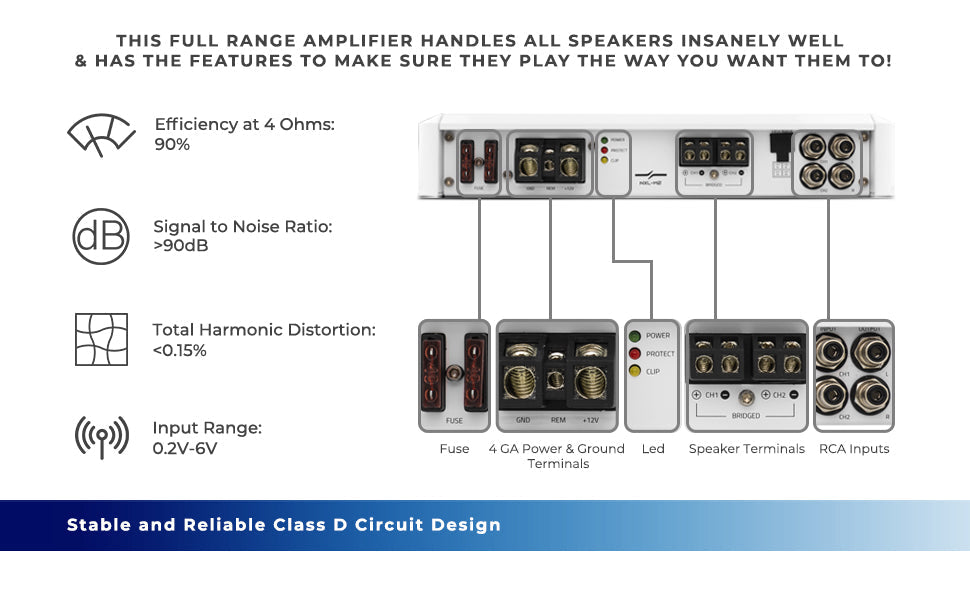

• RCA output with Tiffany style RCA connections
• High level speaker input
• Power, protection, and clipping LED indicators
• 4 gauge power input terminals
• 80 amp fuse rating with 2 x 40 amp fuses
• Thermal, overload, short circuit, DC output, clipping, and voltage input protection

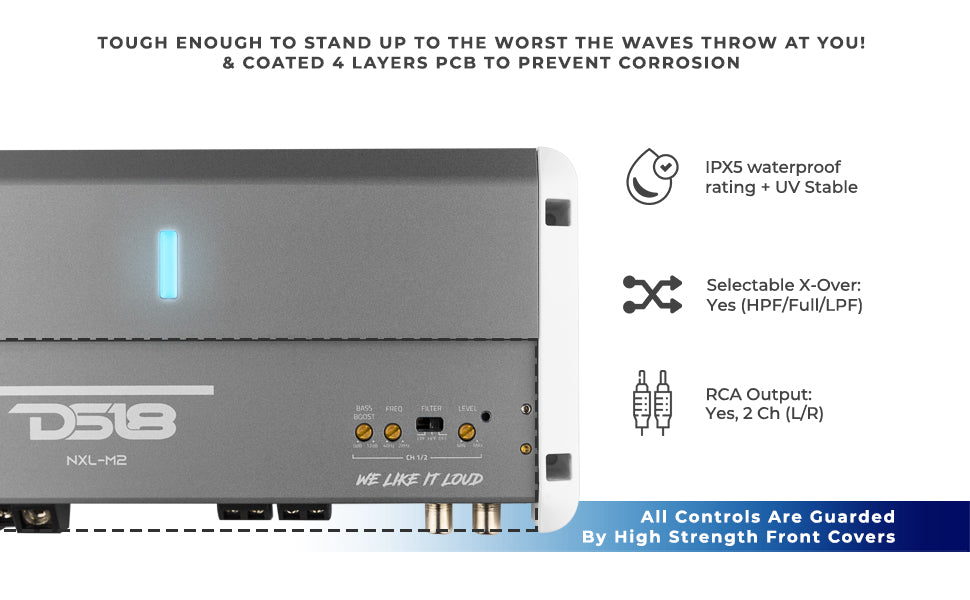

• Coated 4 layer PCB for improved outdoor durability
• IPX5 water resistant rating
• UV protected and corrosion resistant hardware
• Compact aluminum and ABS housing
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom powersports audio systems

VEHICLE FITMENT

Universal
