NXL-F4 Full-Range Class D 4-Channel Amplifier

Power your marine or powersports audio system with clean output, compact size, and a flush mount design that looks as good as it performs. The DS18 NXL-F4 Full Range Class D 4 Channel Amplifier is built for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom audio systems that need reliable power in a water resistant package.

The NXL-F4 delivers 4 x 100 watts RMS at 4 ohms, 4 x 160 watts RMS at 2 ohms, and 2 x 320 watts bridged at 4 ohms, giving you flexible power for speakers across your system. With Class D efficiency, IP67 water resistant protection, a built in voltmeter, bass boost on the rear channels, and a compact flush mount chassis, this amplifier is ready to keep your audio system loud, clean, and protected in harsh outdoor conditions.

FEATURES

• 4 channel full range marine and powersports amplifier
• Class D digital amplifier design
• 1200 watts max power
• 4 x 100 watts RMS at 4 ohms
• 4 x 160 watts RMS at 2 ohms
• 2 x 320 watts bridged at 4 ohms
• 2 ohm stable stereo operation
• Flush mount design for a clean installation
• Built in voltmeter for battery voltage monitoring
• 20Hz to 20KHz frequency range

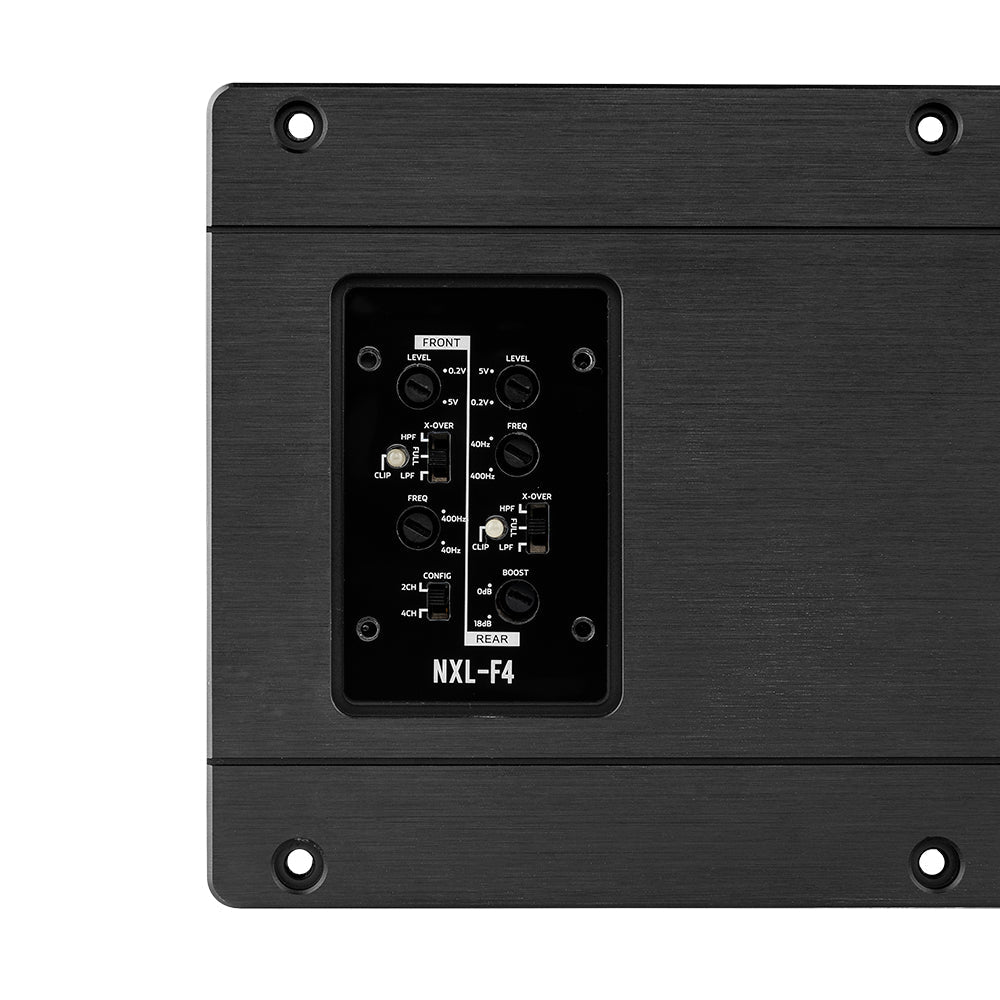

• 40Hz to 400Hz crossover range
• 0dB to 18dB bass boost on rear channels
• 90dB signal to noise ratio
• Less than 0.1% total harmonic distortion
• 0.2V to 6V gain range
• Full range digital topology
• Compact 238mm x 135mm x 41mm chassis
• 4.5 lb product weight
• IP67 water resistant marine grade construction
• Designed to pair with DS18 NXL series speakers
• Great for boats, UTVs, ATVs, motorcycles, golf carts, Jeeps, and custom powersports audio systems

VEHICLE FITMENT

Universal
