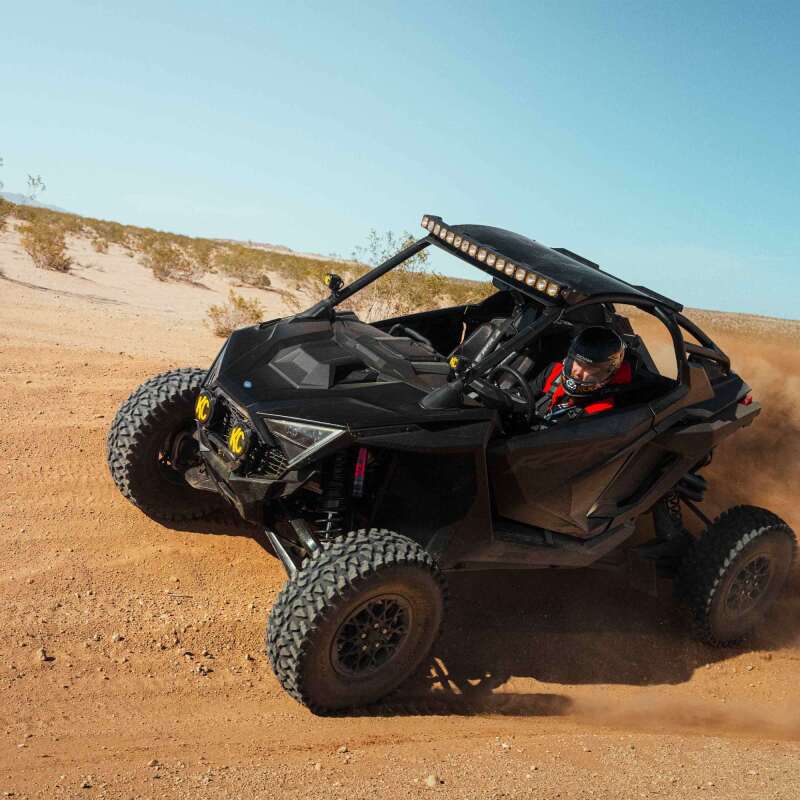

FLEX ERA LED Light Bar 40" Master Kit

KC FLEX ERA® 40" LED Light Bar Master Kit | Linkable, Customizable, High-Output Off-Road Lighting System

Take full command of your nighttime adventures with the KC FLEX ERA® 40" LED Light Bar Master Kit—the most powerful, adaptable, and customizable lighting system in the FLEX ERA® family. Designed for those who demand unmatched beam quality and rugged performance, this modular light bar delivers an impressive 31,648 lumens of pure trail illumination.

Built with KC’s linkable and curvable design, the 40" light bar consists of four 10" segments that can be configured straight or with a radius to match your vehicle’s profile. Each light comes pre-assembled with Combo Beam lenses, and the kit includes Spot Beam lenses, amber backlighting, and a full plug-n-play wiring harness—all wrapped in legendary KC build quality.

With both Combo and Spot beam lenses, a complete wiring kit, and mounting hardware included, the FLEX ERA® 40" Master Kit delivers everything you need in one box—no extra guesswork, no extra purchases, just total lighting domination.

FEATURES

• Unrivaled 31,648 Lumens of High-Speed Visibility
• Flexible Modular Design – Linkable, Curvable, and Configurable
• Master Kit Includes Combo & Spot Beam Lenses for Custom Light Spread
• Amber LED Backlight – Day or Night Style Statement
• IP68 Waterproof/Dustproof Rating – Built to Handle Any Terrain
• Customizable Bezels – Available in Gold, Black, Red, and Blue (sold separately)
• Complete Plug-N-Play Wiring Harness with Dual-Throw Switch Included

INCLUDES

• (4) 10” KC FLEX ERA® LED Light Bars
• (3) Linker & End Mount Assembly Kits
• (4) Combo Beam Lenses (Pre-installed)
• (4) Spot Beam Lenses
• (4) KC Black Light Covers with Yellow Logo
• (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch

SPECIFICATIONS

• Lumens: 31,648 lm @5000K
• LUX @ 10 Meters: 6,440 lx (Combo) / 7,200 lx (Spot)
• Candela: 644,000 cd (Combo) / 720,000 cd (Spot)
• Beam Distance: 1,296 meters (Combo) / 2,364 meters (Spot)
• Beam Patterns: Combo (Pre-installed) / Spot (Included)
• Wattage: 36W (Amber Backlight) / 324W (Main Beam)
• Amp Draw @ 12V: 4.0A (Backlight) / 36.0A (Main Beam)
• Voltage Range: 9V–36V
• IP Rating: IP68 Waterproof & Dustproof
• Dimensions (Straight): W 41.36" x H 2.66" x D 3.85"
• Dimensions (Curved): W 41.14" x H 2.66" x D 3.85"

VEHICLE FITMENT

Universal
