FLEX ERA LED Light Bar 30" Master Kit

KC FLEX ERA® 30" LED Light Bar Master Kit | High-Performance, Customizable, Linkable Off-Road LED Bar

Set a new benchmark in trail lighting with the KC FLEX ERA® 30" LED Light Bar Master Kit — the most powerful and versatile lighting system in the FLEX ERA family. Engineered for extreme off-road performance, this modular LED light bar delivers an astounding 23,736 lumens, with the ability to customize beam pattern, configuration, and style.

The linkable and curvable design allows you to tailor the length and curvature of your light bar using KC’s innovative Power Linkers and Linker Brackets. Whether you want a straight or radius setup, this kit adapts seamlessly to your rig and driving needs.

Pre-installed with Combo Beam lenses and bundled with Spot Beam lenses, the Master Kit provides both near-field illumination and long-distance reach. With its Amber LED backlight, IP68-rated durability, and legendary KC build quality, the FLEX ERA 30” bar lights up every corner of the trail — and does it in style.

Stop guessing — start trailblazing. The Master Kit includes everything you need: multiple beam options, full wiring kit, mounts, o-rings, covers, and more. It’s the ultimate solution for high-performance lighting on the trail.

FEATURES

• Massive 23,736 Lumens for Superior Trail Visibility
• Modular, Linkable, and Curvable Design – Configure Your Perfect Setup
• Combo & Spot Beam Lenses Included for Beam Customization
• Amber LED Backlight for Day/Night Visibility and Signature Style
• Customizable Bezels – Standard Gold with Optional Red, Blue, or Black (Sold Separately)
• Complete Plug-N-Play Wiring Harness with Dual-Throw Switch
• IP68 Waterproof & Dustproof – Built to Conquer Extreme Terrain

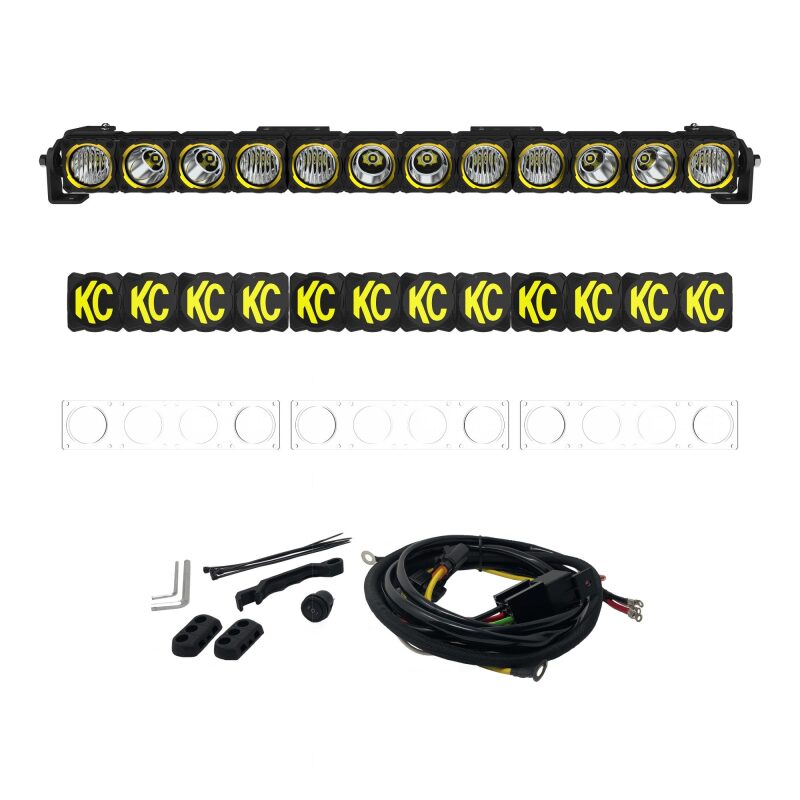

INCLUDES

• (3) 10” KC® FLEX ERA® LED Light Bar Segments
• (2) Linker & End Mount Assembly Kits
• (3) Combo Beam Lenses (Pre-installed)
• (3) Spot Beam Lenses
• (3) KC Light Covers – Black with Yellow KC Logo
• (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch

SPECIFICATIONS

• Lumens: 23,736 lm @ 5000K
• LUX @ 10m: 4,830 lx (Combo) / 5,400 lx (Spot)
• Candela: 483,000 cd (Combo) / 540,000 cd (Spot)
• Beam Distance: 972 m (Combo) / 1,773 m (Spot)
• Beam Patterns: Combo (Pre-installed) + Spot (Included)
• Wattage: 36W (Amber Backlight) / 324W (Main Beam)
• Amp Draw @ 12V: 3.0A (Backlight) / 27.0A (Main Beam)
• Voltage Range: 9–36V
• IP Rating: IP68
• Dimensions (Straight): W 31.36" x H 2.66" x D 3.85"
• Dimensions (Curved): W 31.28" x H 2.66" x D 3.85"

VEHICLE FITMENT

Universal
