Can-Am Maverick X3 Bombproof Front Upper Shock Mount

Strengthen one of the hardest hit areas on your Can-Am Maverick X3 with the CT Race Worx Bombproof Front Upper Shock Mount. The factory front upper shock mount is not a true double shear design, which leaves the shock bolt and frame taking heavy leverage during hard impacts, bottom outs, and aggressive suspension cycling.

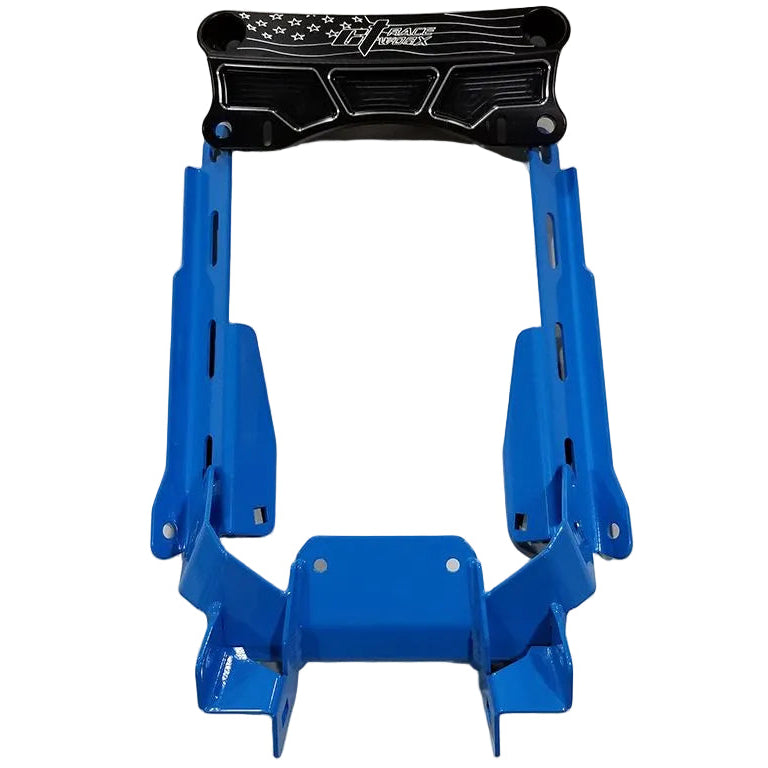

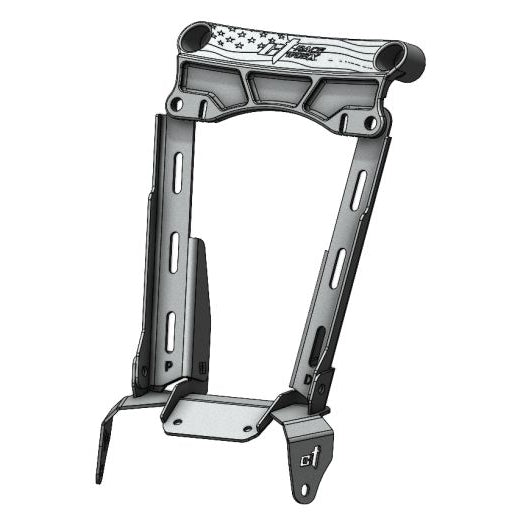

CT Race Worx solves that problem with a 6061 billet aluminum shock mount that mimics the factory bracket while adding serious strength and stability. The external brace extends to the outer edge of the chassis to help control twisting, while the lower sheet metal brace ties into the billet upper piece with two 1/2 inch Grade 8 bolts. It also creates a strong mounting foundation for optional front limit straps, making this a smart upgrade for rocks, whoops, jumps, and hard trail abuse.

FEATURES

• Heavy duty front upper shock mount for the Can-Am Maverick X3
• Replaces the weak factory style upper shock mount setup
• Helps add strength and stability to the front shock mounting area
• 6061 billet aluminum upper shock mount
• External brace extends to the outer edge of the chassis
• Helps reduce twisting and chassis flex under hard impacts

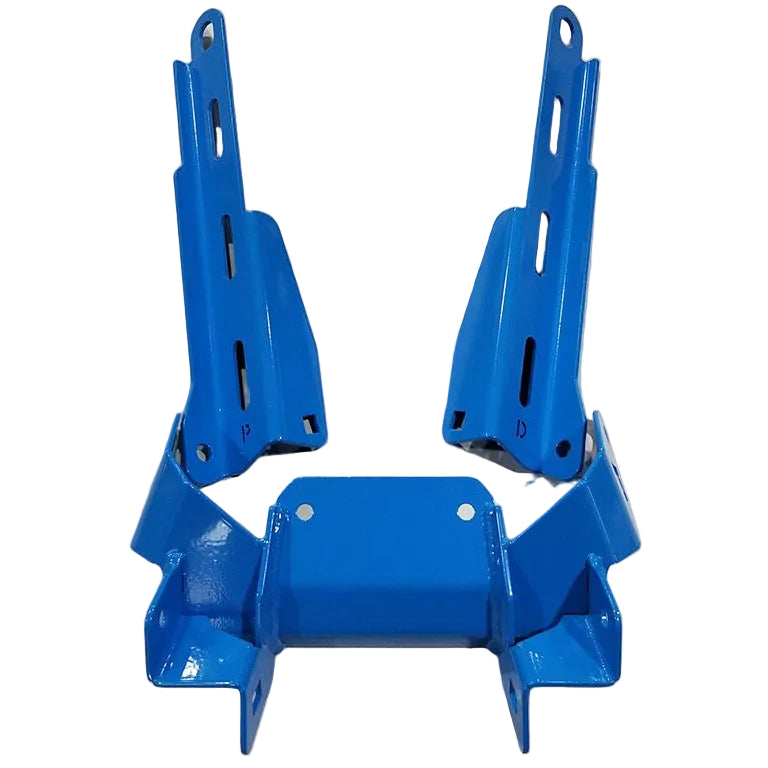

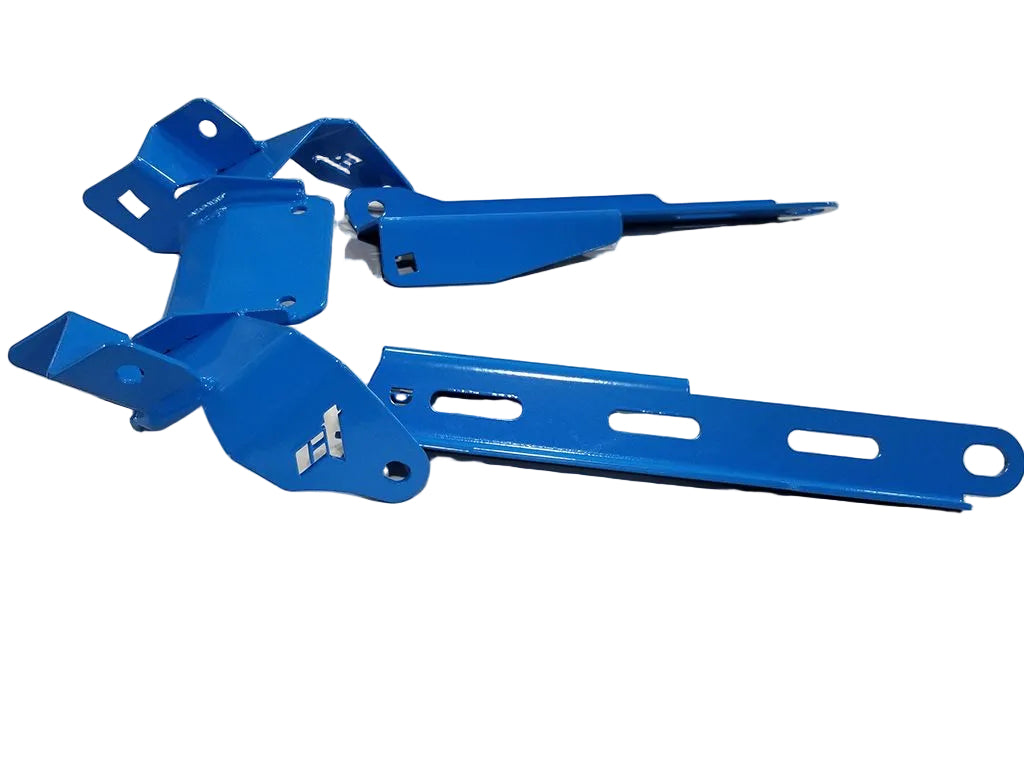

• Lower sheet metal brace connects to the billet upper mount
• Uses two 1/2 inch Grade 8 bolts for a secure connection

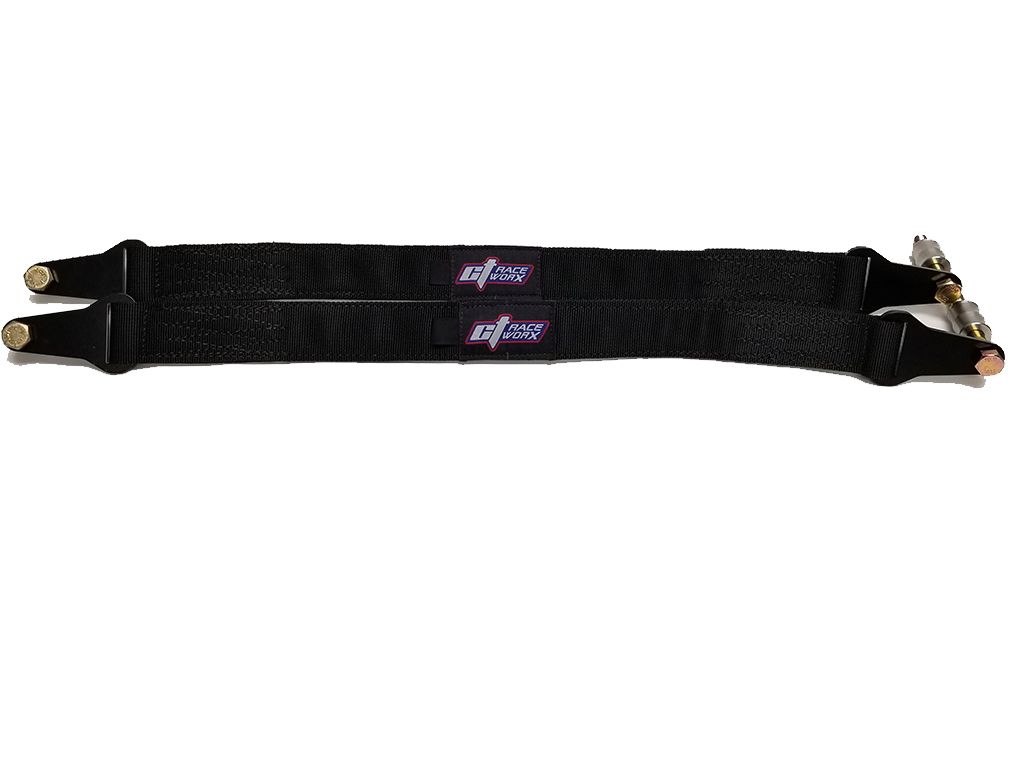

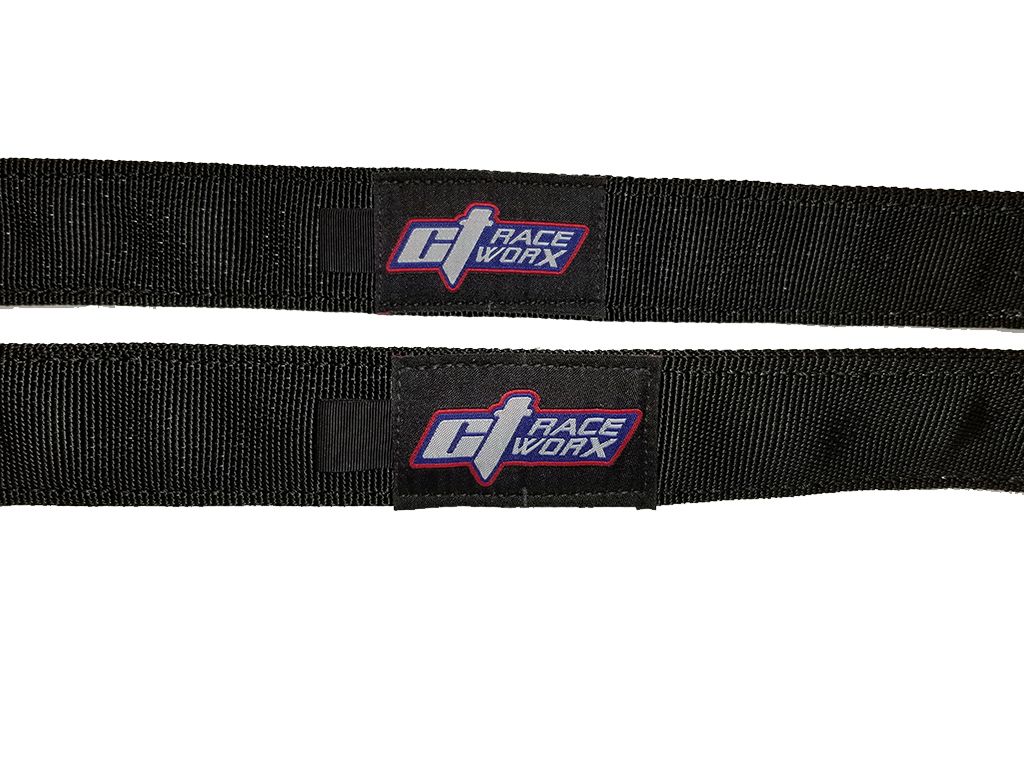

• Provides a strong mounting point for optional front limit straps
• Built for rocks, desert chop, jumps, whoops, and aggressive off-road use
• Available with Bare or Black Anodized billet aluminum finish

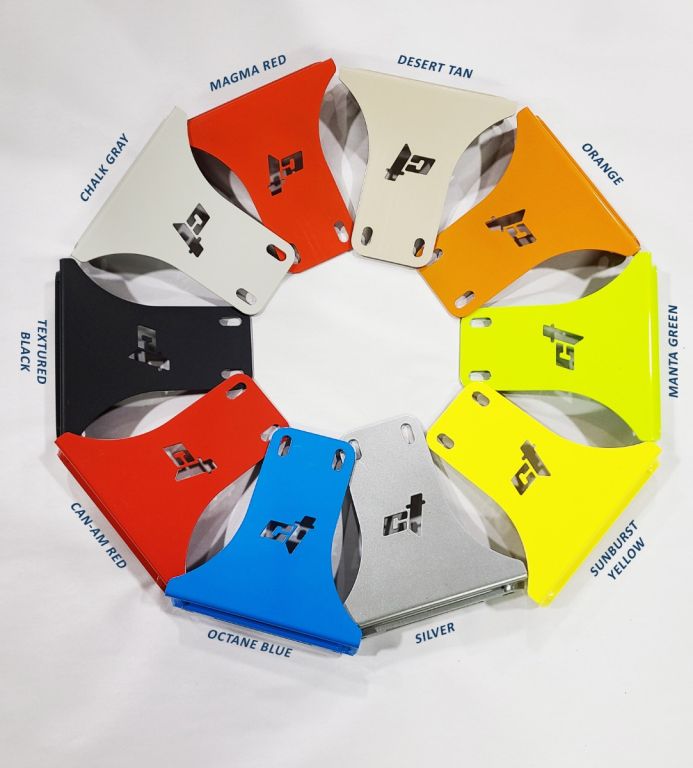

• Steel brace available in multiple powder coat color options

VEHICLE FITMENT

Can-Am Maverick X3

INSTALLATION

Click Here to Download Installation Instructions
