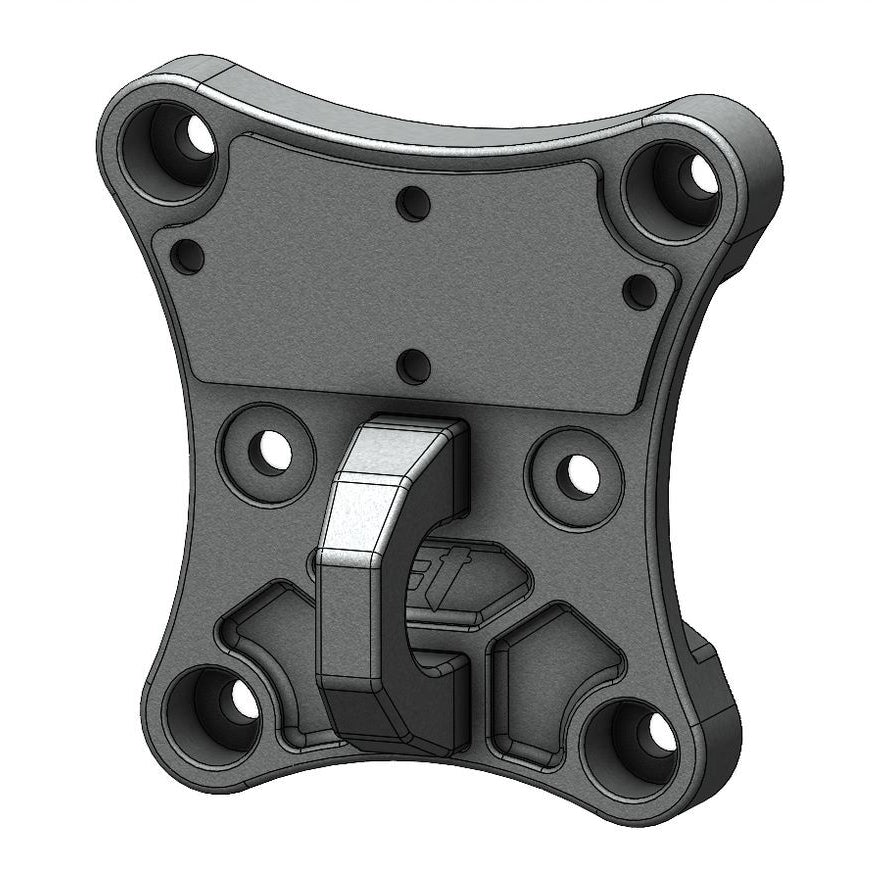

Can-Am Maverick X3 Billet Proof Radius Rod Plate with Tow Ring and Steel Plate

Add a serious rear recovery point to your Can-Am Maverick X3 with the CT Race Worx Billet Proof Radius Rod Plate with Tow Ring and Steel Plate. This setup gives you the strength and clean billet look of CT Race Worx’s radius rod plate, plus a weldable steel plate for custom fabrication needs.

The billet base plate is machined from 1.25 inch thick 6061 T6 aluminum for strength and rigidity, while the tow ring is machined from 1.25 inch thick 7075 T6 aluminum for extra thread strength at the main recovery point. The tow ring is pressed into the plate and secured from the back side with 1/2 inch bolts that provide 1.75 inches of thread engagement. CT Race Worx also adds a 3/16 inch thick steel plate held on with four 3/8 inch bolts, giving you room to weld on a 1.75 inch tube while keeping the billet plate design intact.

FEATURES

• Heavy duty rear radius rod plate with integrated tow ring
• Designed for Can-Am Maverick X3 models
• Includes weldable steel plate for custom fabrication
• Base plate machined from 1.25 inch thick 6061 T6 aluminum
• Tow ring machined from 1.25 inch thick 7075 T6 aluminum
• Tow ring is recessed into the plate and pressed into place
• Uses 1/2 inch bolts with 1.75 inches of thread engagement into the tow ring
• 3/16 inch thick steel plate mounts with four 3/8 inch bolts
• Steel plate has room to weld on a 1.75 inch tube
• Back side is machined to fit 3/8 inch nylock nuts for easier installation
• Black anodized billet plate and tow point
• Precision machined details for a clean, high end finish

VEHICLE FITMENT

Can-Am Maverick X3
