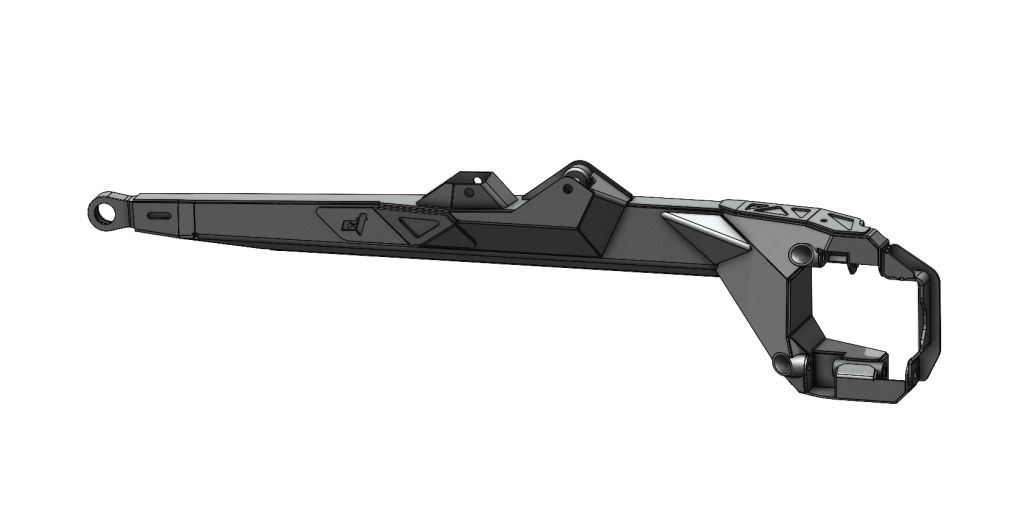

Can-Am Maverick X3 64" Boxed Trailing Arms Gen 2

Give your 64 inch Can-Am Maverick X3 the rear suspension strength and ground clearance it needs to take real abuse. The CT Race Worx Boxed Trailing Arms Gen 2 are built from battle proven boxed construction and designed for riders who want to crawl rocks, blast desert trails, and push through rough terrain without hanging up on weak factory arms.

These trailing arms add over 4 inches of ground clearance, with more than 2.5 inches of extra usable clearance under the shock mount at the front of the tire. CT Race Worx builds them from a mix of .115 inch and .1875 inch Grade 50 steel, with over 1/4 inch of material thickness on the underside for serious impact resistance. They are bolt-on, work with factory shocks, and include smart details like sealed brake line bungs, supplied 6mm hardware, and a removable rear back strap for easier installation.

FEATURES

• Designed for 64 inch Can-Am Maverick X3 models
• Gen 2 boxed trailing arm design
• Adds over 4 inches of ground clearance
• Provides over 2.5 inches of usable clearance under the shock mount
• Built from .115 inch and .1875 inch Grade 50 steel
• More than 1/4 inch of material thickness on the underside
• Bolt-on installation
• Compatible with factory shocks with no modifications required
• Sealed brake line bungs help protect mounting points
• Includes supplied 6mm hardware
• Removable rear back strap helps simplify installation
• Designed to accommodate stock wheels and tires
• Available in Bare, Semi Gloss Black, Can-Am Red, Octane Blue, Sunburst Yellow, Silver, Manta Green, Orange, Desert Tan, Magma Red, and Chalk Gray
• Backed by CT Race Worx lifetime warranty

NOTES

Build time is usually 3-4 weeks.

VEHICLE FITMENT

Can-Am Maverick X3 64" Models
