Can-Am Maverick R Pro Rock High Clearance Billet Radius Rod Kit

Turn the rear end of your Maverick R into a rock ready weapon. The CT Race Worx Can-Am Maverick R Pro Rock High Clearance Billet Radius Rod Kit is built for drivers who drag their machine through ledges, boulders, ruts, and rough technical terrain where stock radius rods are begging to get bent.

This kit is all about strength, clearance, and serviceability. The lower and middle radius rods are machined from 1.5 inch thick American made 7075 T6 aluminum plate for serious impact resistance. The design adds a massive 3 1/8 inches of ground clearance, helping keep the rods nearly even with the axle shaft through parts of the suspension cycle so they are less likely to hang up on rocks and trail obstacles.

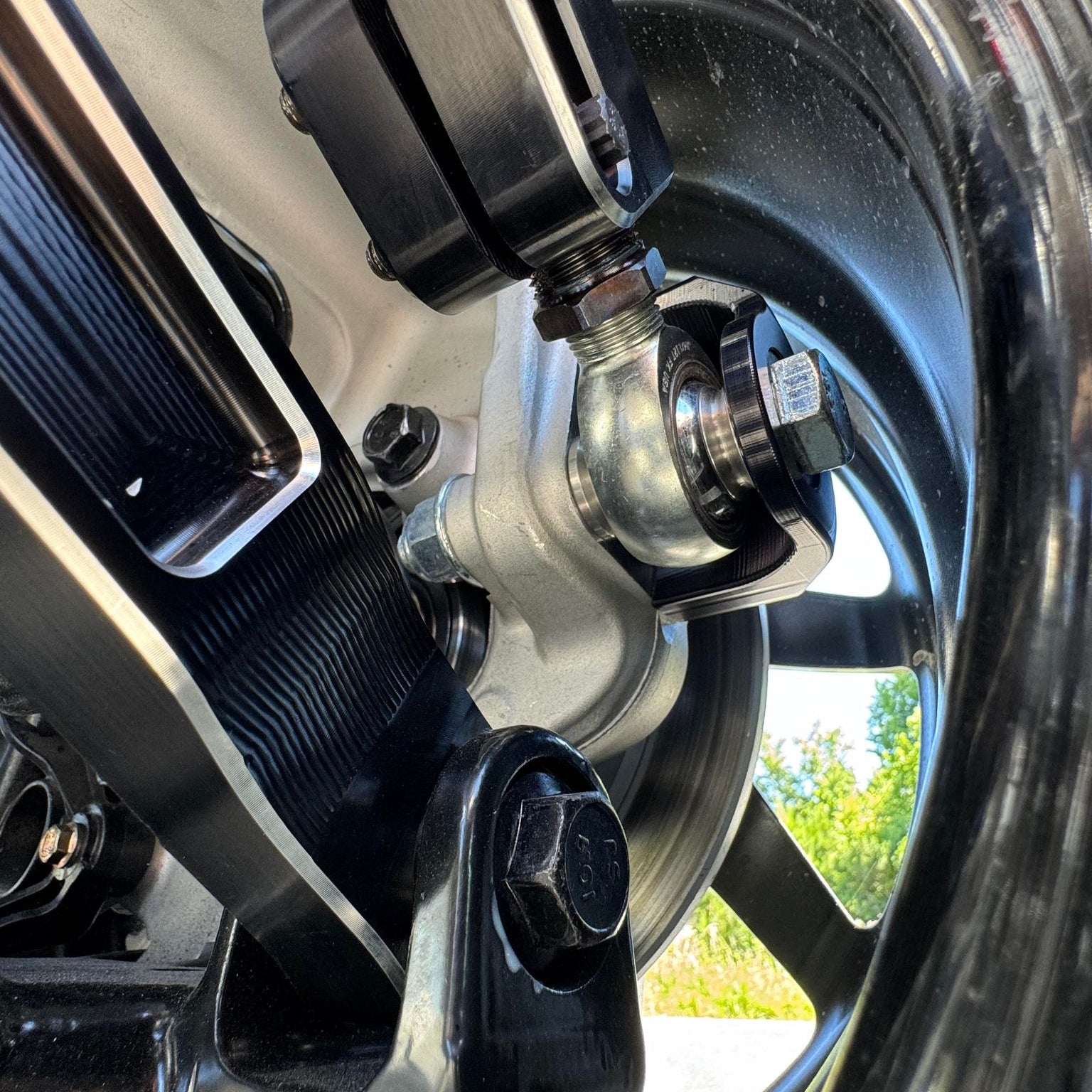

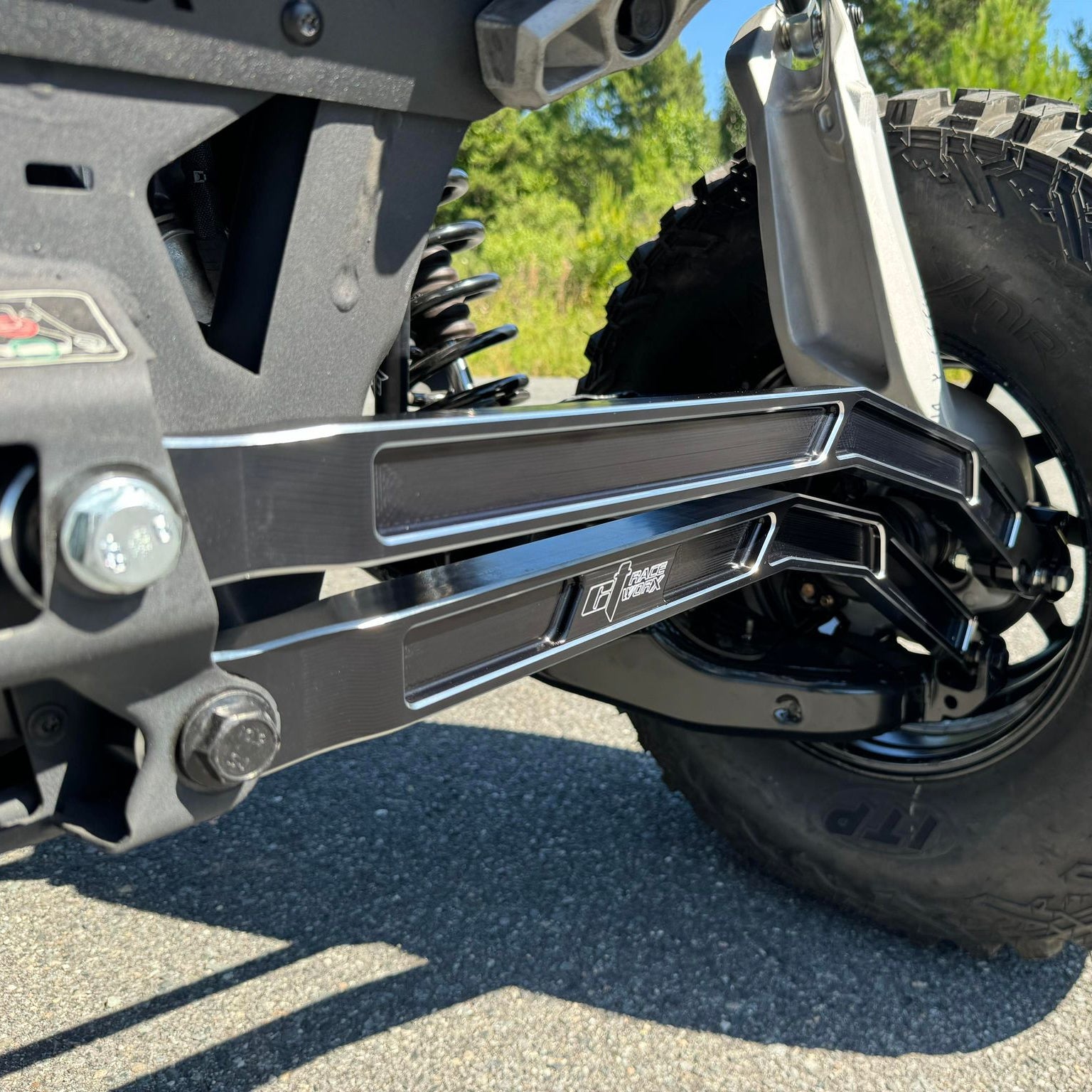

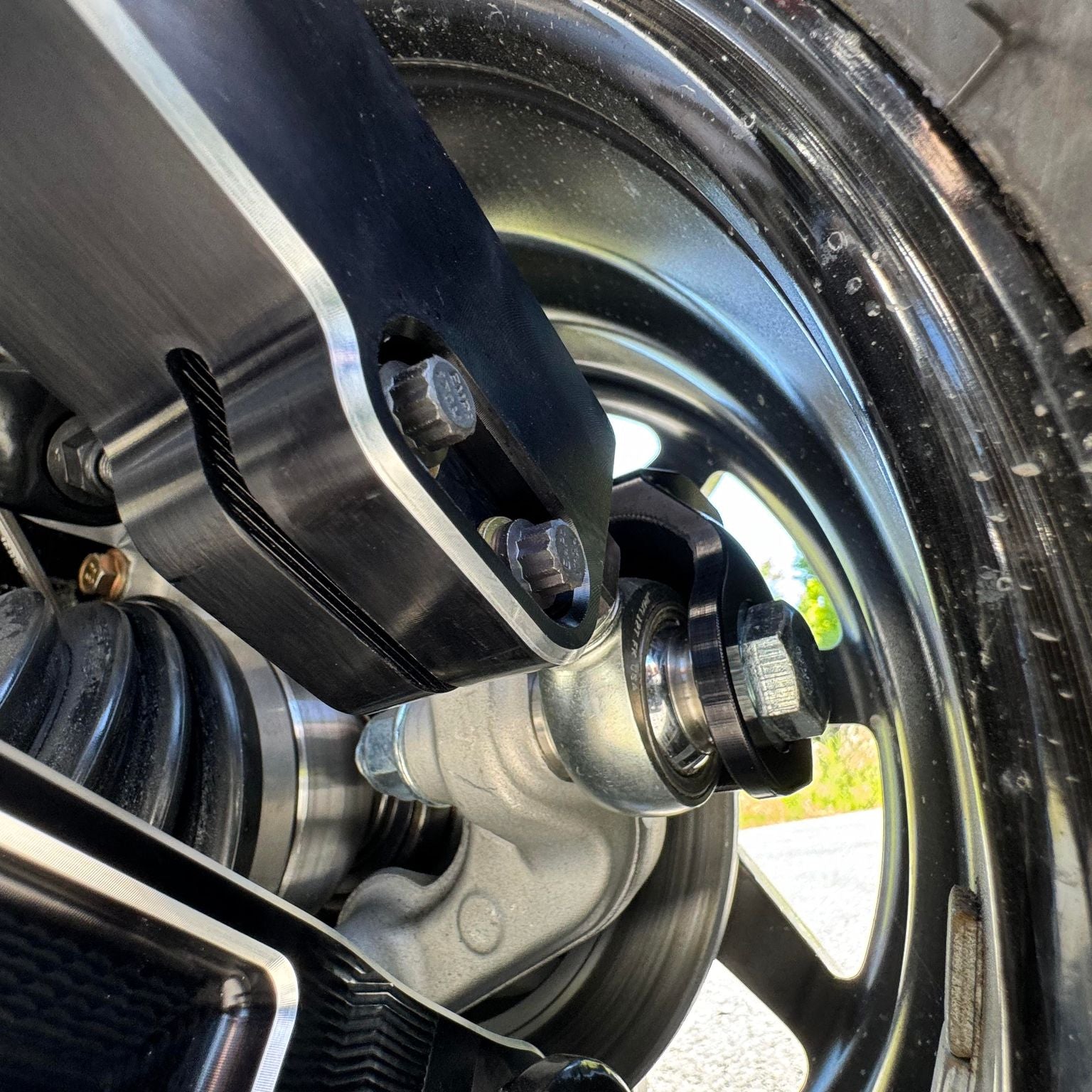

The lower rods feature a large chamfered front face to help slide over obstacles instead of catching hard. The middle rods use CT Race Worx’s single point toe adjuster, letting you adjust toe on the car with no jam nuts to fight loose. At the spindle, billet double shear brackets with 14mm hardware replace the weaker factory style tapered stud setup for a much stronger and easier to service rear suspension connection.

FEATURES

• Built for Can-Am Maverick R models
• Designed for rock crawling and technical off road abuse
• Adds 3 1/8 inches of ground clearance
• Lower and middle rods machined from 1.5 inch thick American made 7075 T6 aluminum plate

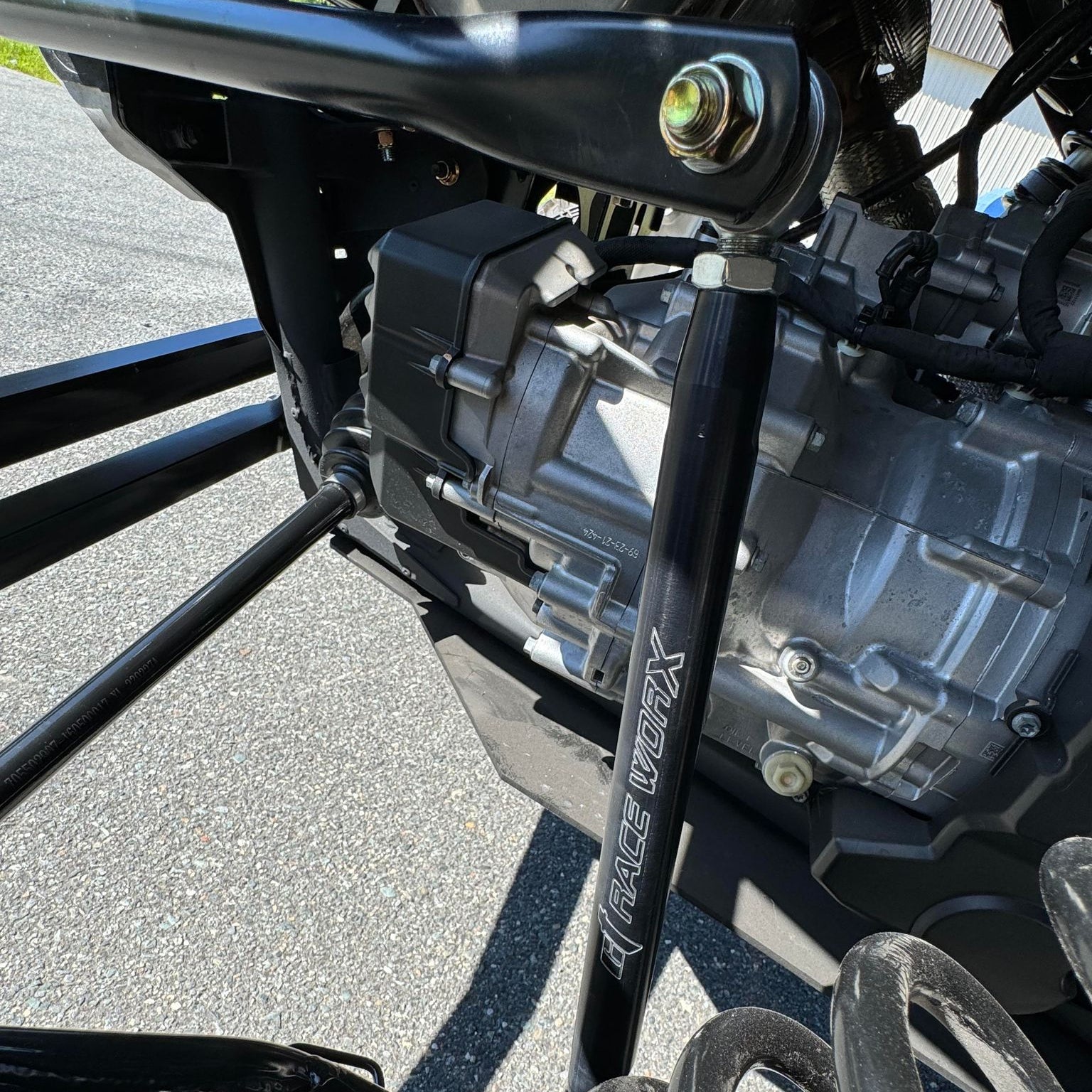

• Upper rods made from 1.25 inch solid round 7075 aluminum
• Lower and middle rods use 3/4 inch FK WSSX uniballs
• Upper rods use 3/4 inch FK JMX joints
• Includes 303 stainless steel spacers
• Chamfered lower rod face helps slide over rocks and obstacles
• Single point toe adjuster allows easy on vehicle adjustment
• No jam nuts on the toe adjuster

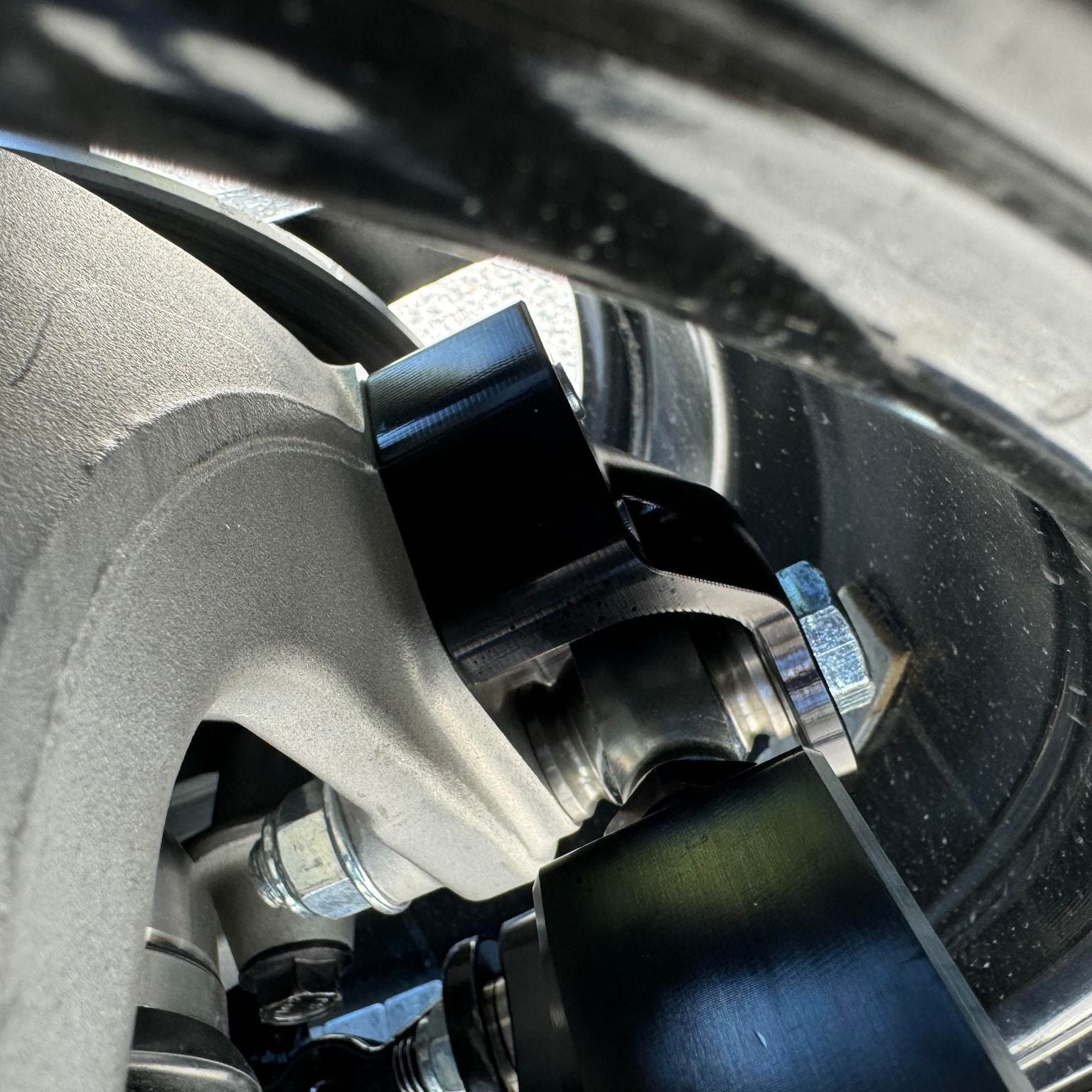

• Billet double shear spindle brackets add strength at the hub connection
• Uses 14mm spindle hardware
• Built for strength, clearance, and easier serviceability
• Comes standard in black anodized finish

NOTES

Build time is usually 3-4 weeks.

VEHICLE FITMENT

Can-Am Maverick R
