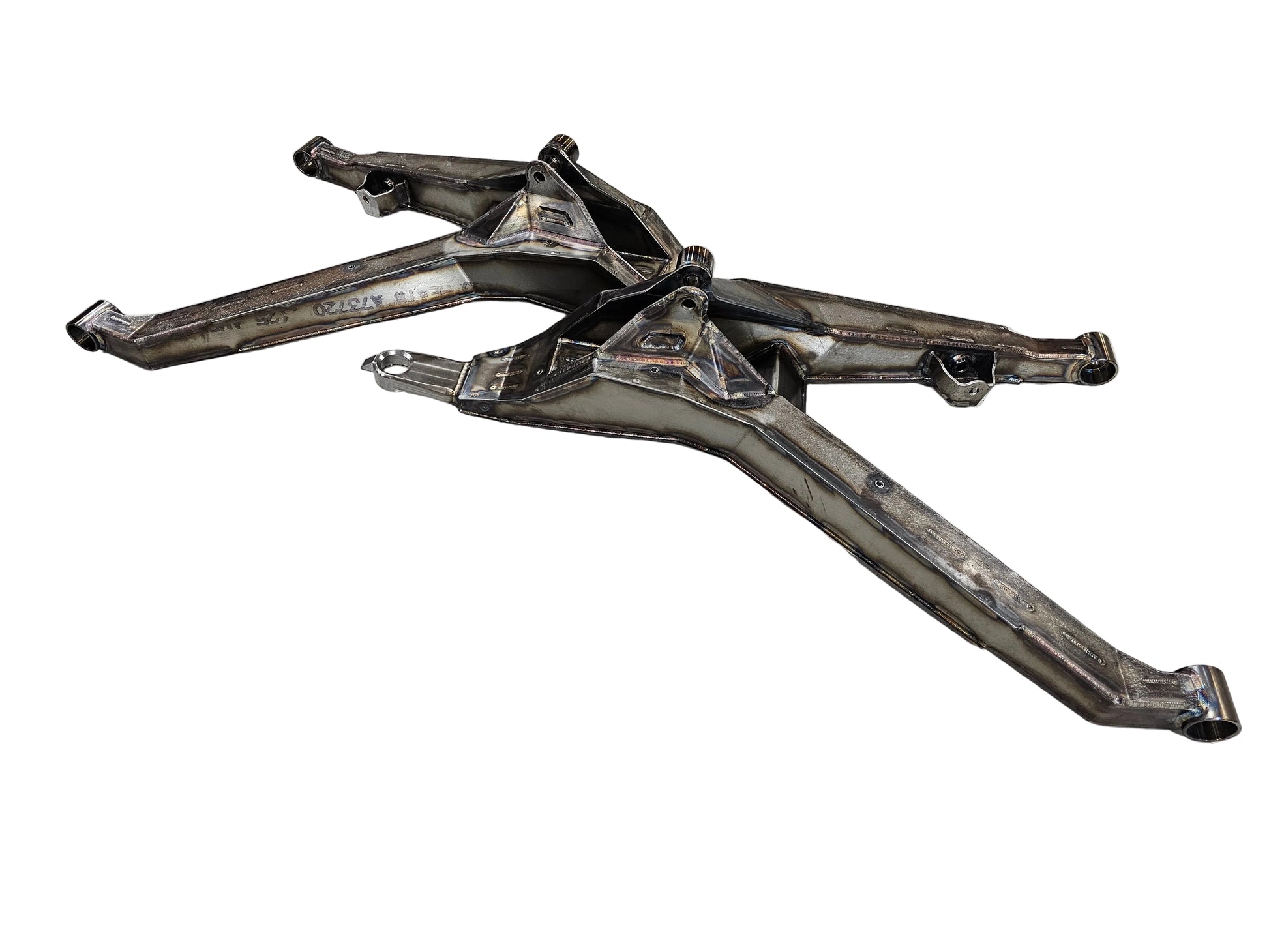

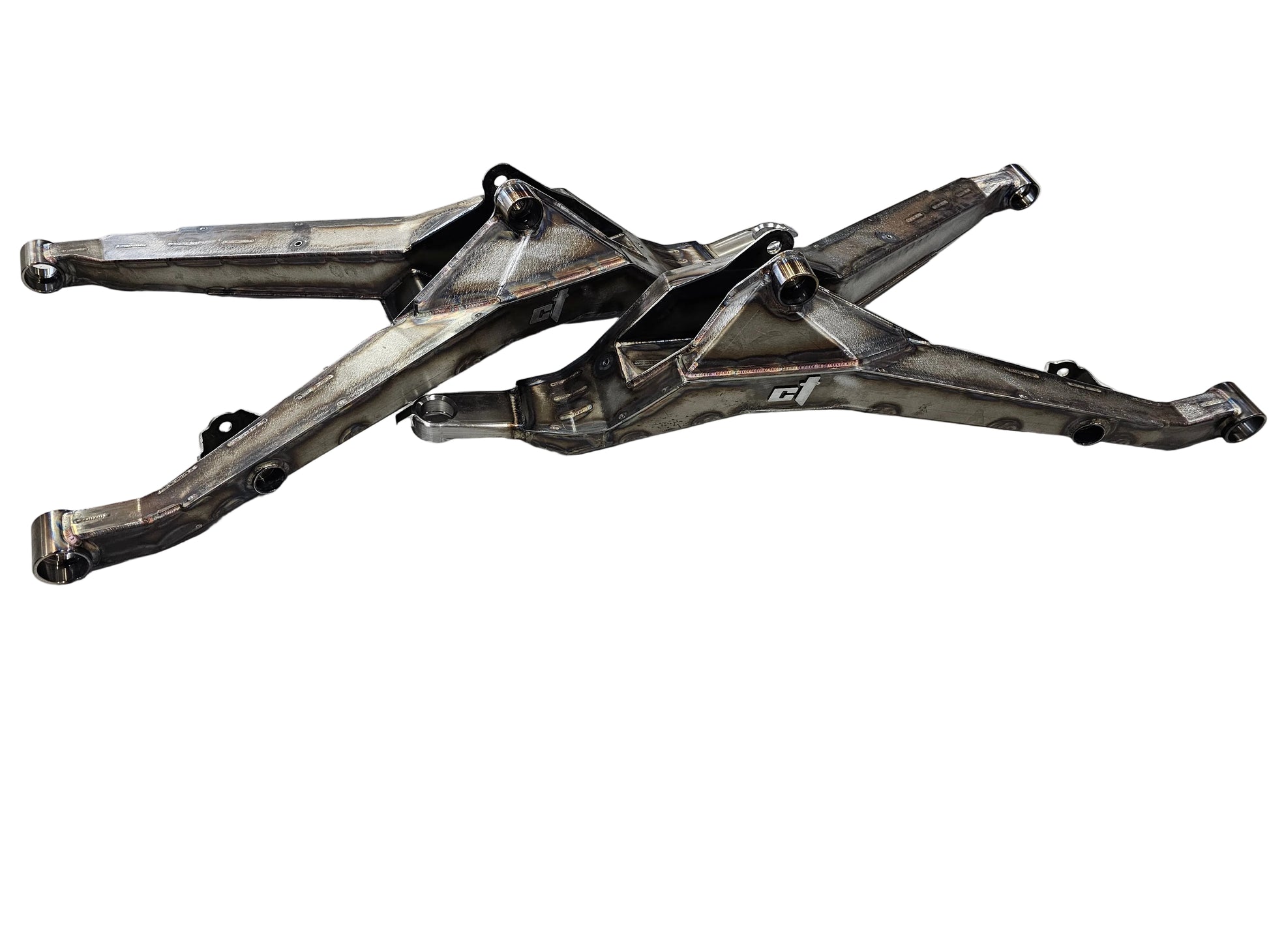

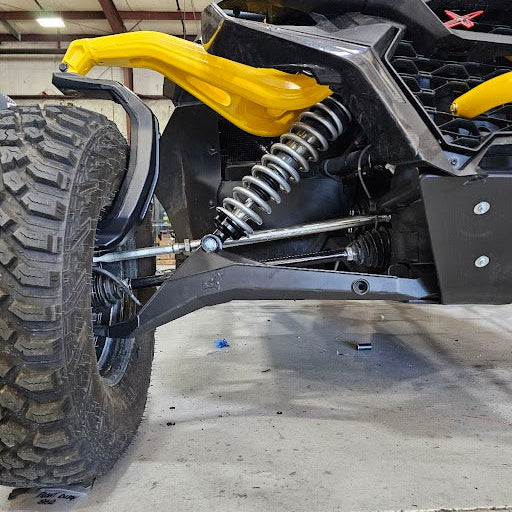

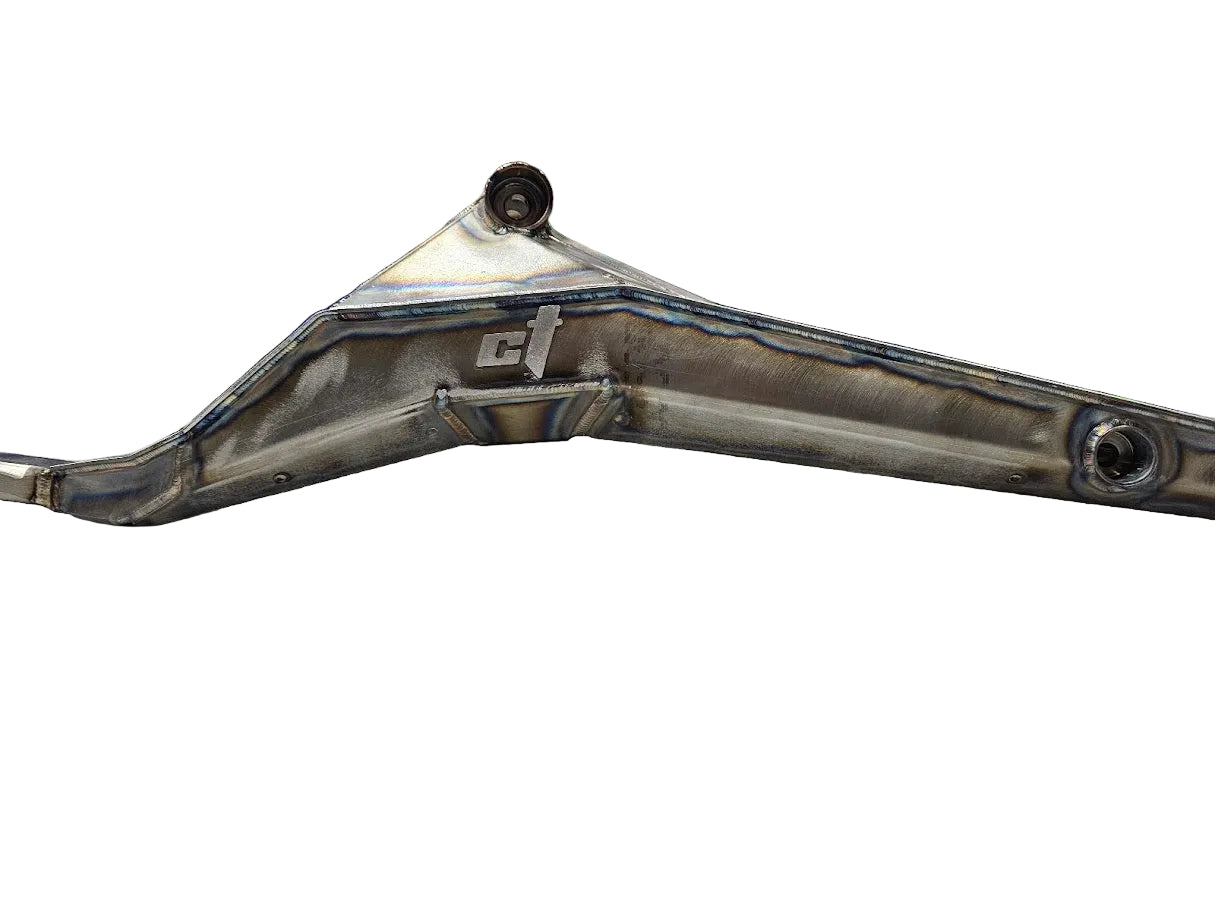

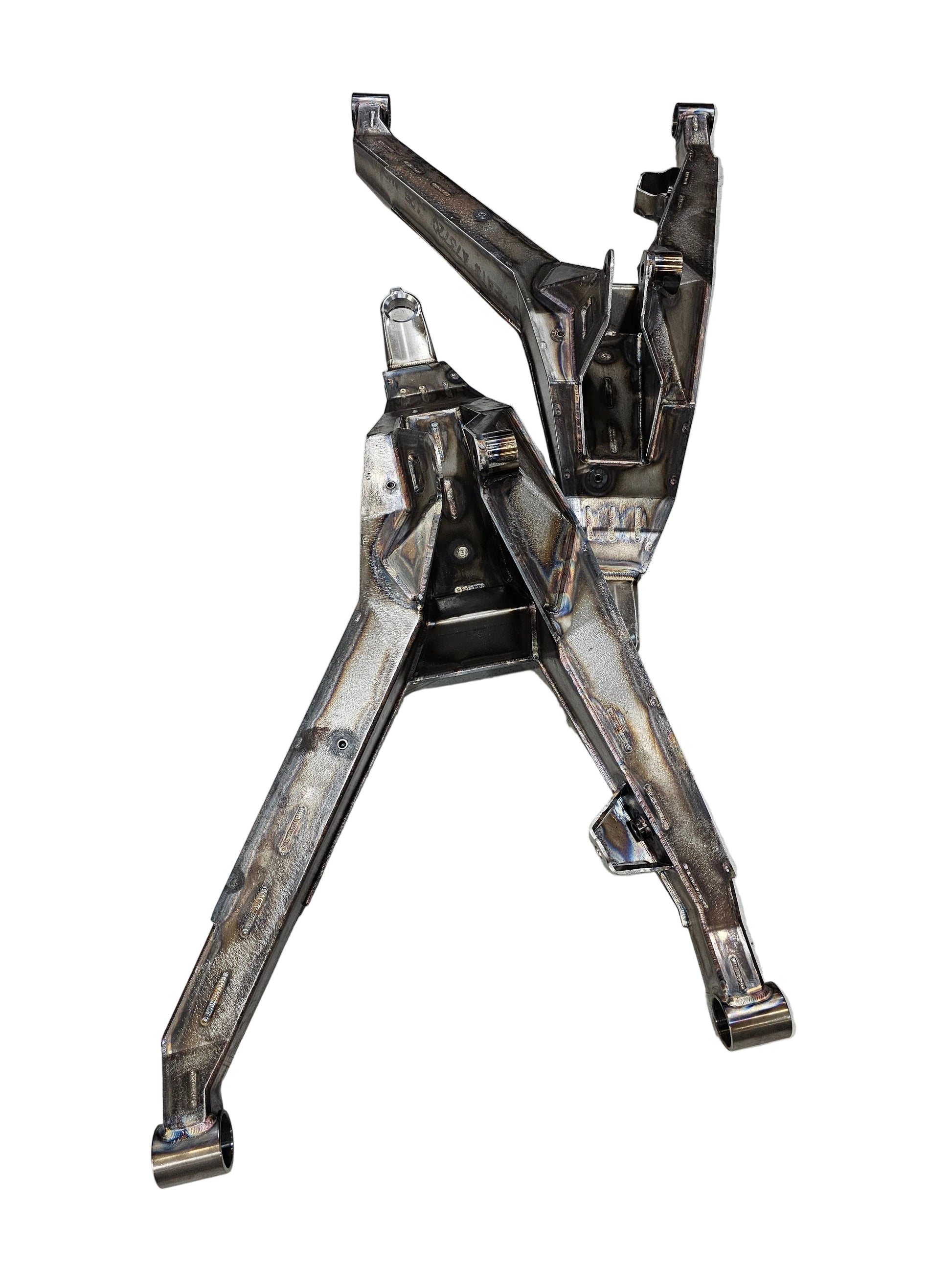

Can-Am Maverick R Pro Desert Chromoly Lower A-Arms

Build your Maverick R for speed, abuse, and hard desert hits with CT Race Worx Pro Desert Chromoly Lower A-Arms. These arms are made for drivers who push through whoops, dunes, chop, and short course terrain where stock suspension parts are not going to cut it.

CT Race Worx designed the Pro Desert arms to deliver serious strength without the extra bulk of their rock focused setup. They are lighter than the Pro Rock arms, while still reinforcing the high stress area between the spindle and shock mount. That makes them a killer choice for high speed terrain where strength, weight, and suspension control all matter.

The Pro Desert lower A arms are built from 100% 4130 chromoly and TIG welded for race level durability. A bolt on double shear spindle mount ties into the stock spindles using 7/8 inch FK uniballs and 14mm mounting hardware, giving the front end a massive strength upgrade over the factory ball joint setup. You also get 1.5 inches of clearance over stock, room for larger aftermarket axles, rerouted brake lines for added protection, and a ramped double layered bash face to help slide over trail hits instead of hanging up on them.

FEATURES

• Built for Can-Am Maverick R models
• Designed for desert racing, dune, and short course applications
• 100% 4130 chromoly construction
• 100% TIG welded for serious strength
• Lighter than CT Race Worx Pro Rock lower A arms
• Reinforced strength between the spindle and shock mount
• Patent pending bolt on double shear spindle mount
• Uses 7/8 inch FK uniballs at the spindle
• Uses 14mm spindle mounting hardware instead of the stock 12mm ball joint stud
• Adds 1.5 inches of clearance over stock
• Allows clearance for larger aftermarket axles
• O ring sealed A arm bushings
• Includes 17-4 heat treated stainless steel pins and caps
• Ramped double layered front bash face helps slide over obstacles
• Rerouted brake lines for better protection
• Recessed front sway bar mounting point protects hardware
• Double shear sway bar brackets for stronger mounting
• 1.412 inch sway bar mounting width
• Ships bare for custom coating or Steel-It style finish

NOTES

Build time is usually 3-4 weeks.

VEHICLE FITMENT

Can-Am Maverick R
