Can-Am Defender Suspension Kit

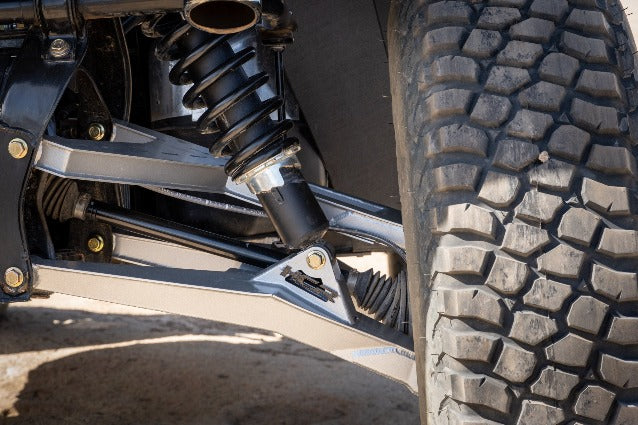

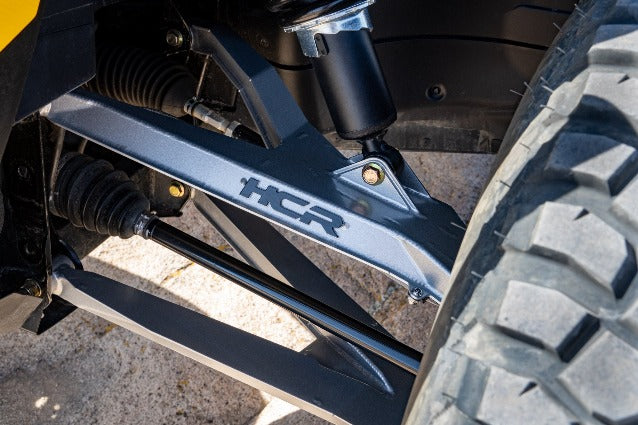

HCR is proud to introduce the all-new Can-Am Defender front forward high-clearance A-arms and rear high-clearance A-arms, both with built-in lift. The front arms are pushed forward 2.5” to clear a larger tire. On top of that, we built the front and rear control arms to have up to a 3” lift. This lift is built into the arms to make the installation process a breeze—no brackets to deal with. Designed to tackle all types of terrain, these arms are built from our proprietary material that is 30% stronger than 4130 Chromoly. To complement the strength and lift, the high-clearance lower arms are sure to keep you from high centering and keep you moving.

FEATURES

• Can-Am Defender Front Forward A-Arm and Rear A-Arm Suspension Kit will add lift without adding shock brackets.

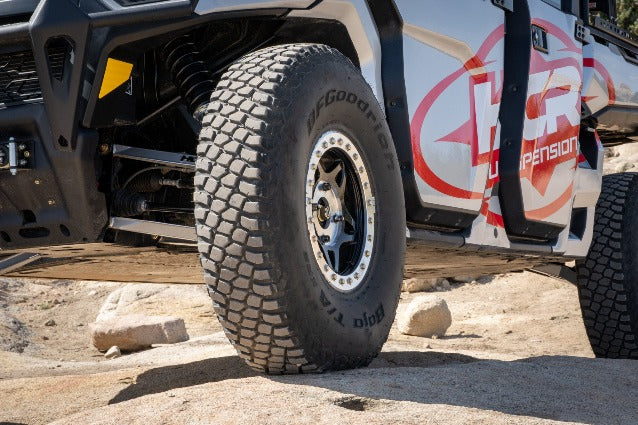

• Pushes front arms forward 2.5" for more clearance to run up to 35” tires, depending on the tire manufacturer
• Laser-cut construction for precise fit and finish
• CNC'd chromoly mounting points for increased integrity
• High-clearance boxed front A-arm Design 0.500" added ground clearance
• Each piece is TIG welded by hand for strength and aesthetics

• 100% proudly made in the U.S.A
• 100% bolt-on installation using factory mounting points

INCLUDES

• (4) Front control arms
• (4) Rear Control arms
• Hardware

NOTES

• For optimal clearance and performance, a 4+3 wheel is recommended.
• Some manufacturers' 5+2 wheels will work, but confirm the true offset
• 23+ Models must have aftermarket shocks
• HCR kits are made to order. Quality takes time

VEHICLE FITMENT

• Can-Am Defender HD 8 XT Cab (2018+)
• Can-Am Defender HD 10 XMR (2018+)
• Can-Am Defender HD 10 XT Cab (2018+)
• Can-Am Defender MAX HD 8 XT Cab (2018+)
• Can-Am Defender MAX HD 10 XT Cab (2018+)
• Can-Am Defender MAX HD 10 XMR (2019+)
• Can-Am Defender MAX Lone Star Edition (2018+)
• Can-Am Defender MAX Limited (2020+)
• Can-Am Defender HD 10 Mossy Oak (2020-2022)
• Can-Am Defender HD 10 Pro Limited (2021+)
• Can-Am Defender HD 10 6x6 Limited (2021+)
